matlab.ui.componentcontainer.ComponentContainer Class
Namespace: matlab.ui.componentcontainer
Description
matlab.ui.componentcontainer.ComponentContainer
is a class you build on
to make your own classes of custom UI component objects. When you define a subclass of
this base class, you can use the ComponentContainer
properties and
methods to build your UI component objects. Specify this syntax on the first line of
your class definition file to directly inherit from the
ComponentContainer
class, where MyComponent
is the name of your
object:
classdef MyComponent < matlab.ui.componentcontainer.ComponentContainer
The matlab.ui.componentcontainer.ComponentContainer
class is a handle
class.
Class Attributes
Abstract | true |
ConstructOnLoad | true |
HandleCompatible | true |
For information on class attributes, see Class Attributes.
Properties
BackgroundColor
— Background color
[0.94 0.94 0.94]
(default) | RGB triplet | hexadecimal color code | 'r'
| 'g'
| 'b'
| ...
Background color, specified as an RGB triplet, a hexadecimal color code, or one of the color options listed in the table.
RGB triplets and hexadecimal color codes are useful for specifying custom colors.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
; for example,[0.4 0.6 0.7]
.A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Thus, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
GetObservable | true |
SetObservable | true |
Visible
— State of visibility
'on'
(default) | on/off logical value
State of visibility, specified as 'on'
or
'off'
, or as numeric or logical 1
(true
) or 0
(false
). A value of 'on'
is
equivalent to true
, and 'off'
is
equivalent to false
. Thus, you can use the value of this
property as a logical value. The value is stored as an on/off logical value
of type matlab.lang.OnOffSwitchState
.
'on'
— Display the object.'off'
— Hide the object without deleting it. You still can access the properties of an invisible UI component.
To make your app start faster, set the Visible
property to 'off'
for all components that do not need to
appear at startup.
Changing the size of an invisible container triggers the
SizeChangedFcn
callback when it becomes
visible.
Changing the Visible
property of a container does
not change the values of the
Visible
properties of child components. This is
true even though hiding the container causes the child components to be
hidden.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
GetObservable | true |
SetObservable | true |
ContextMenu
— Context menu
empty GraphicsPlaceholder
array (default) | ContextMenu
object
Context menu, specified as a ContextMenu
object created
using the uicontextmenu
function.
Use this property to display a context menu when you right-click on an area
of the component that does not contain any underlying UI components or
graphics objects.
To display a context menu when you right-click on any portion of the
custom UI component, write code to set the ContextMenu
property of all underlying UI components and graphics objects whenever the
ContextMenu
property of your custom component is
set.
Example: Component With Context Menu
This code creates a simple custom UI component with a label and a
button in a grid layout manager. Whenever a user creates an instance of
the SimpleComponent
class and assigns a context menu
to the component, the code in the update
method then
assigns that same context menu to the underlying
GridLayout
, Button
, and
Label
objects.
classdef SimpleComponent < matlab.ui.componentcontainer.ComponentContainer properties (Access = private, Transient, NonCopyable) GridLayout matlab.ui.container.GridLayout Button matlab.ui.control.Button Label matlab.ui.control.Label end methods (Access=protected) function setup(obj) % Set component size obj.Position = [100 100 220 50]; % Create grid obj.GridLayout = uigridlayout(obj,[1 2]); % Create components obj.Label = uilabel(obj.GridLayout,... "Text","My component"); obj.Button = uibutton(obj.GridLayout); end function update(obj) obj.GridLayout.ContextMenu = obj.ContextMenu; obj.Label.ContextMenu = obj.ContextMenu; obj.Button.ContextMenu = obj.ContextMenu; end end end
Create a SimpleComponent
object and specify a
context menu. Right-click on the empty space in the component and on the
label. The context menu appears.
fig = uifigure;
cm = uicontextmenu(fig);
m1 = uimenu(cm);
SimpleComponent(fig,"ContextMenu",cm);
Attributes:
GetAccess | public |
SetAccess | public |
NonCopyable | true |
Transient | true |
GetObservable | true |
SetObservable | true |
Position
— UI component size and location, excluding margins
[100 100 100 100]
(default) | [left bottom width height]
UI component size and location, excluding the margins for decorations such
as axis labels and tick marks. Specify this property as a vector of form
[left bottom width height]
.
Note
Setting this property has no effect when the parent of the UI
component is a GridLayout
.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
Units
— Units of measurement
'pixels'
(default)
Units of measurement, specified as 'pixels'
.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
GetObservable | true |
SetObservable | true |
Layout
— Layout options
empty LayoutOptions
array (default) | GridLayoutOptions
object
Layout options, specified as a
GridLayoutOptions
object. This property specifies options for components
that are children of grid layout containers. If the component is not a child of a grid layout
container (for example, it is a child of a figure or panel), then this property is empty and has
no effect. However, if the component is a child of a grid layout container, you can place the
component in the intended row and column of the grid by setting the Row
and
Column
properties of the GridLayoutOptions
object.
For example, this code places an image component in the third row and second column of its parent grid.
g = uigridlayout([4 3]); im = uiimage(g); im.ImageSource = 'peppers.png'; im.ScaleMethod = 'fill'; im.Layout.Row = 3; im.Layout.Column = 2;
To make the image span multiple rows or columns, specify the
Row
or Column
property as a
two-element vector. For example, this image spans columns
2
through
3
.
im.Layout.Column = [2 3];
Attributes:
GetAccess | public |
SetAccess | public |
SizeChangedFcn
— Size change callback
''
(default) | function handle | cell array | character vector
Size change callback, specified as one of these values:
A function handle.
A cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.
A character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.
The SizeChangedFcn
callback executes when:
The component becomes visible for the first time.
The component is visible while its size changes.
This component becomes visible for the first time after its size changes. This situation occurs when the size changes while the component is invisible, and then it becomes visible later.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
AbortSet | true |
GetObservable | true |
SetObservable | true |
NonCopyable | true |
CreateFcn
— Creation function
''
(default) | function handle | cell array | character vector
Object creation function, specified as one of these values:
Function handle.
Cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.
Character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.
For more information about specifying a callback as a function handle, cell array, or character vector, see Callbacks in App Designer.
This property specifies a callback function to execute when MATLAB creates the object. MATLAB initializes all property values before executing the
CreateFcn
callback. If you do not specify the
CreateFcn
property, then MATLAB executes a default creation function.
Setting the CreateFcn
property on an existing
component has no effect.
If you specify this property as a function handle or cell array, you can
access the object that is being created using the first argument of the
callback function. Otherwise, use the gcbo
function to access
the object.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
AbortSet | true |
GetObservable | true |
SetObservable | true |
NonCopyable | true |
DeleteFcn
— Deletion function
''
(default) | function handle | cell array | character vector
Object deletion function, specified as one of these values:
Function handle.
Cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.
Character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.
For more information about specifying a callback as a function handle, cell array, or character vector, see Callbacks in App Designer.
This property specifies a callback function to execute when MATLAB deletes the object. MATLAB executes the DeleteFcn
callback before
destroying the properties of the object. If you do not specify the
DeleteFcn
property, then MATLAB executes a default deletion function.
If you specify this property as a function handle or cell array, you can
access the object that is being deleted using the first argument of the
callback function. Otherwise, use the gcbo
function to access
the object.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
AbortSet | true |
GetObservable | true |
SetObservable | true |
NonCopyable | true |
Interruptible
— Callback interruption
'on'
(default) | on/off logical value
Callback interruption, specified as 'on'
or
'off'
, or as numeric or logical 1
(true
) or 0
(false
). A value of 'on'
is
equivalent to true
, and 'off'
is
equivalent to false
. Thus, you can use the value of this
property as a logical value. The value is stored as an on/off logical value
of type matlab.lang.OnOffSwitchState
.
This property determines if a running callback can be interrupted. There are two callback states to consider:
The running callback is the currently executing callback.
The interrupting callback is a callback that tries to interrupt the running callback.
Whenever MATLAB invokes a callback, that callback attempts to interrupt the
running callback (if one exists). The Interruptible
property of the object owning the running callback determines if
interruption is allowed.
A value of
'on'
allows other callbacks to interrupt the object's callbacks. The interruption occurs at the next point where MATLAB processes the queue, such as when there is adrawnow
,figure
,uifigure
,getframe
,waitfor
, orpause
command.If the running callback contains one of those commands, then MATLAB stops the execution of the callback at that point and executes the interrupting callback. MATLAB resumes executing the running callback when the interrupting callback completes.
If the running callback does not contain one of those commands, then MATLAB finishes executing the callback without interruption.
A value of
'off'
blocks all interruption attempts. TheBusyAction
property of the object owning the interrupting callback determines if the interrupting callback is discarded or put into a queue.
Note
Callback interruption and execution behave differently in these situations:
If the interrupting callback is a
DeleteFcn
,CloseRequestFcn
orSizeChangedFcn
callback, then the interruption occurs regardless of theInterruptible
property value.If the running callback is currently executing the
waitfor
function, then the interruption occurs regardless of theInterruptible
property value.Timer
objects execute according to schedule regardless of theInterruptible
property value.
When an interruption occurs, MATLAB does not save the state of properties or the display. For
example, the object returned by the gca
or gcf
command might
change when another callback executes.
Attributes:
GetAccess | public |
SetAccess | public |
GetObservable | true |
SetObservable | true |
BusyAction
— Callback queuing
'queue'
(default) | 'cancel'
Callback queuing, specified as 'queue'
or
'cancel'
. The BusyAction
property
determines how MATLAB handles the execution of interrupting callbacks. There are two
callback states to consider:
The running callback is the currently executing callback.
The interrupting callback is a callback that tries to interrupt the running callback.
Whenever MATLAB invokes a callback, that callback attempts to interrupt a
running callback. The Interruptible
property of the
object owning the running callback determines if interruption is permitted.
If interruption is not permitted, then the BusyAction
property of the object owning the interrupting callback determines if it is
discarded or put in the queue. These are possible values of the
BusyAction
property:
'queue'
— Puts the interrupting callback in a queue to be processed after the running callback finishes execution.'cancel'
— Does not execute the interrupting callback.
Attributes:
GetAccess | public |
SetAccess | public |
GetObservable | true |
SetObservable | true |
BeingDeleted
— Deletion status
on/off logical value
Deletion status, returned as an on/off logical value of type matlab.lang.OnOffSwitchState
.
MATLAB sets the BeingDeleted
property to
'on'
when the DeleteFcn
callback
begins execution. The BeingDeleted
property remains set
to 'on'
until the component object no longer
exists.
Check the value of the BeingDeleted
property to
verify that the object is not about to be deleted before querying or
modifying it.
Attributes:
GetAccess | public |
SetAccess | protected |
GetObservable | true |
SetObservable | true |
Parent
— Parent container
Figure
object (default) | Panel
object | Tab
object | GridLayout
object
Parent container of the component, specified as a
Figure
, Panel
,
Tab
, or GridLayout
object.
Attributes:
GetAccess | public |
SetAccess | public |
Transient | true |
Dependent | true |
NonCopyable | true |
GetObservable | true |
SetObservable | true |
Children
— UI component children
empty GraphicsPlaceholder
array
UI component children, returned as an empty
GraphicsPlaceholder
array. Custom UI components have
no children. Setting this property has no effect.
Attributes:
GetAccess | public |
SetAccess | public |
Transient | true |
Dependent | true |
NonCopyable | true |
HandleVisibility
— Visibility of object handle
'on'
(default) | 'callback'
| 'off'
Visibility of the object handle, specified as 'on'
,
'callback'
, or 'off'
.
This property controls the visibility of the object in its parent's list
of children. When an object is not visible in its parent's list of children,
it is not returned by functions that obtain objects by searching the object
hierarchy or querying properties. These functions include get
, findobj
, clf
, and close
. Objects are valid even
if they are not visible. If you can access an object, you can set and get
its properties, and pass it to any function that operates on
objects.
HandleVisibility Value | Description |
---|---|
'on' | The object is always visible. |
'callback' | The object is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line. This option blocks access to the object at the command-line, but allows callback functions to access it. |
'off' | The object is invisible at all times. This option is
useful for preventing unintended changes to the UI by
another function. Set the
HandleVisibility to
'off' to temporarily hide the
object during the execution of that function. |
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
GetObservable | true |
SetObservable | true |
Type
— Type of UI component object
character vector
Type of UI component object, returned as character vector containing the component name.
Attributes:
GetAccess | public |
SetAccess | protected |
NonCopyable | true |
Transient | true |
Tag
— Object identifier
''
(default) | character vector | string scalar
Object identifier, specified as a
character vector or string scalar. You can specify a unique
Tag
value to serve as an identifier for an object.
When you need access to the object elsewhere in your code, you can use the
findobj
function to search
for the object based on the Tag
value.
Attributes:
GetAccess | public |
SetAccess | public |
Dependent | true |
GetObservable | true |
SetObservable | true |
UserData
— User data
[]
(default) | array
User data, specified as any MATLAB array. For example, you can specify a scalar, vector, matrix, cell array, character array, table, or structure. Use this property to store arbitrary data on an object.
If you are working in App Designer, create public or private properties in
the app to share data instead of using the UserData
property. For more information, see Share Data Within App Designer Apps.
Attributes:
GetAccess | public |
SetAccess | public |
Transient | true |
GetObservable | true |
SetObservable | true |
Methods
Examples
IP Address Input
Define a class called IPAddressComponent
that creates a custom component for inputting four values to form an IP address.
To define the class, create a file called IPAddressComponent.m
that contains the following class definition with these features:
A
Value
public property that stores the IP address.NumericField
andGridLayout
private properties that place four numeric edit fields in a horizontal row.A
setup
method that initializesNumericField
andGridLayout
.An
update
method that updates theNumericField
values when the IP address changes.A
handleNewValue
method that sets theValue
property based on the values of the 4 numeric edit fields.
classdef IPAddressComponent < matlab.ui.componentcontainer.ComponentContainer % IPAddressComponent a set of 4 edit fields for IP Address input properties Value (1,4) {mustBeNonnegative, mustBeInteger, mustBeLessThanOrEqual(Value, 255)} = [192 168 1 2]; end events (HasCallbackProperty, NotifyAccess = protected) ValueChanged % ValueChangedFcn callback property will be generated end properties (Access = private, Transient, NonCopyable) NumericField (1,4) matlab.ui.control.NumericEditField GridLayout matlab.ui.container.GridLayout end methods (Access=protected) function setup(obj) % Set the initial position of this component obj.Position = [100 100 150 22]; % Layout obj.GridLayout = uigridlayout(obj,[1,4], ... 'RowHeight',{22},'ColumnWidth',{'1x','1x','1x','1x'},... 'Padding',0,'ColumnSpacing',2); % Building blocks for k = 1:4 obj.NumericField(k) = uieditfield(obj.GridLayout, 'numeric',... 'Limits', [0 255], 'RoundFractionalValues', true, ... 'FontName', 'Courier New', 'FontWeight', 'bold', ... 'ValueChangedFcn',@(src,event) obj.handleNewValue()); end end function update(obj) % Update view for k = 1:4 obj.NumericField(k).Value = obj.Value(k); end end end methods (Access=private) function handleNewValue(obj) obj.Value = [obj.NumericField.Value]; % Execute the event listeners and the ValueChangedFcn callback property notify(obj,'ValueChanged'); end end end

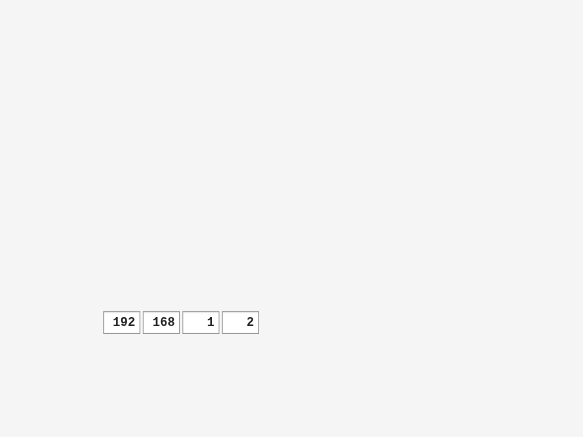

Next, create the component by calling the IPAddressComponent
constructor method, which is provided by the ComponentContainer
class, and return the object as h
. Specify a function that displays the new IP address in the Command Window when the component value changes.
h = IPAddressComponent;
h.ValueChangedFcn = @(src,event) disp("Value changed to: " + num2str(h.Value));
Enter the IP Address 192.168.1.10
into the edit fields. MATLAB® displays the updated IP address in the Command Window.
More About
Enabling User-Defined Callbacks for Your UI Component
When defining your class, you optionally can add a block for events that the UI component fires.
To create such an event block, give your class an events
block
with the HasCallbackProperty
attribute. When you do this,
MATLAB creates a public property for each event in the block. The public
property stores the user provided callback to execute when the event fires. The name
of the public property is the name of the event appended with the letters
Fcn
. For example, a UI component might define the public
event ValueChanged
and generate the corresponding public property
ValueChangedFcn
. Use the notify
method
to fire the event and execute the callback in the property.
For example, here is the event block for a UI component that allows a user to pick a color value.
events (HasCallbackProperty, NotifyAccess = protected) ValueChanged end
notify
method to fire the ValueChanged
event
and execute the callback in the ValueChangedFcn
property when a
user picks a color
value.function getColorFromUser(obj) c = uisetcolor(obj.Value); if (isscalar(c) && (c == 0)) return; end % Update the Value property oldValue = obj.Value; obj.Value = c; % Execute user callbacks and listeners notify(obj,'ValueChanged'); end
f = uifigure; c = ColorSelector(f,'ValueChangedFcn',@(o,e)disp('Changed'))
Component Object Creation Behavior
After you define your class, when a user creates an instance of your UI component and adds it to their app, MATLAB performs these steps in order:
If the user did not specify a parent, create a new UI figure and parent the component to it.
Call the class
setup
method.Set any component properties that the user specified as name-value arguments.
Call the class
update
method.
Version History
Introduced in R2020b
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
