Bus Creator

Group input signals, buses, or messages into bus

•

Libraries:
Simulink / Commonly Used Blocks
Simulink / Signal Routing
HDL Coder / Signal Routing

Description

The Bus Creator block combines input signals, buses, or messages into a bus, which retains the separate identities of the signals, nested buses, and messages. By default, the Bus Creator block creates a virtual bus, which is analogous to a bundle of wires held together by tie wraps. Alternatively, the block can create a nonvirtual bus, which is analogous to a structure in C code.

Elements of a bus must have unique names. By default, each element of the bus inherits the name of the element connected to the Bus Creator block. If duplicate names are present, the Bus Creator block appends the port number to all input element names. For elements that do not have names, the Bus Creator block generates names in the form signaln, where n is the port number connected to the element. You can refer to elements by name when you search for their sources or select elements for connection to other blocks. For element naming guidelines, see Signal Names and Labels.

To extract elements from the bus by name, use a Bus Selector block.

To create a bus that contains other buses, connect the other buses to the Bus Creator block input ports.

Tip

For buses at subsystem and model interfaces, use Out Bus Element blocks instead of a Bus Creator block with an Outport block. Out Bus Element blocks:

• Reduce line complexity and clutter in a block diagram.

• Allow you to more easily change the interface incrementally.

Examples

Group Signal Lines Within Component

You can group signals into a virtual bus within a component by using Bus Creator blocks.

Open a new model and add three source blocks. For example, add a Chirp Signal, Sine Wave, and Step block.

To create a bus that contains the outputs from multiple blocks, click and drag to select the blocks. For this example, select the Chirp Signal and Sine Wave blocks. In the action bar that appears, click Create Bus.

The software adds a Bus Creator block and connects the inputs to that block. The output of the Bus Creator block is a virtual bus.

To make identifying the elements of the bus easier, label the inputs to the Bus Creator block.

• Double-click the line between the Chirp Signal block and the Bus Creator block. Then, enter Chirp.

• Double-click the line between the Sine Wave block and the Bus Creator block. Then, enter Sine.

To create a second bus that contains the first bus and the output of the Step block, click and drag to select the Bus Creator and Step blocks. In the action bar that appears, click Create Bus. Including the Sine Wave and Chirp Signal blocks in your selection does not affect the result because these blocks provide elements of the input bus.

The software adds another Bus Creator block and connects the inputs to that block. The output of the Bus Creator block is a virtual bus that contains a nested bus.

You can nest buses to any depth. If one of the inputs to a Bus Creator block is a bus, then its output is a bus hierarchy that contains at least one nested bus.

Label the inputs to the new Bus Creator block.

• Double-click the line between the Bus Creator blocks. Then, enter Sinusoidal.

• Double-click the line between the Step block and the Bus Creator block. Then, enter Step.

Optionally, arrange the blocks to improve the readability of the model.

Connect the output of the second Bus Creator block to a Scope block and label the output Sources.

To visually identify the buses by line styles, in the Simulink^® Toolstrip, on the Modeling tab, click Update Model or Run.

Create Nonvirtual Buses Within Component

You can use Bus Creator blocks to create nonvirtual buses within components.

Open and compile the model named BusHierarchy, which uses Bus Creator blocks to create a hierarchy of virtual buses. To compile the model, on the Modeling tab of the Simulink® Toolstrip, click Update Model or Run. Compiling the model updates the line styles, which you can use to visually identify buses.

Alternatively, in the MATLAB® Command Window, enter these commands.

mdl = "BusHierarchy";
open_system(mdl)
set_param(mdl, SimulationCommand="Update")

The virtual buses in this model are not defined by Simulink.Bus objects. To create nonvirtual buses, you must specify bus objects that match the bus hierarchy.

To create the bus objects interactively:

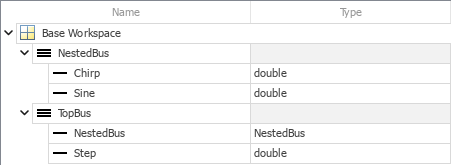

1. Open the Type Editor. Double-click a Bus Creator block. Then, next to the Output data type box, click .

2. In the Type Editor, create two bus object by clicking .

3. In each bus object, create two elements by clicking .

4. Optionally, double-click and rename the objects. For this example, use the signal and bus names.

5. Set the data type of the NestedBus element to NestedBus.

Alternatively, use the Simulink.Bus.createObject function.

bctop = "BusHierarchy/Bus Creator1";
Simulink.Bus.createObject(mdl,bctop);

The function creates two bus objects that are named after the corresponding buses, TopBus and NestedBus.

Now that you have bus objects that correspond to the nonvirtual buses you want to create, convert the top bus to a nonvirtual bus by updating the corresponding Bus Creator block parameters.

1. Open the Property Inspector. In the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

2. Select the Bus Creator block named Bus Creator1.

3. In the Property Inspector, set Output data type to Bus: TopBus.

4. In the Property Inspector, select Output as nonvirtual bus.

5. To identify the nonvirtual bus by line style, recompile the model.

Alternatively, enter these commands.

set_param(bctop, OutDataTypeStr="Bus: TopBus")
set_param(bctop, NonVirtualBus="on")
set_param(mdl, SimulationCommand="Update")

TopBus is now a nonvirtual bus, while NestedBus remains a virtual bus.

To convert the nested bus to a nonvirtual bus, update the corresponding Bus Creator block parameters:

1. Select the Bus Creator block named Bus Creator.

2. In the Property Inspector, set Output data type to Bus: NestedBus.

3. In the Property Inspector, select Output as nonvirtual bus.

4. To identify the nonvirtual bus by line style, recompile the model.

Alternatively, enter these commands.

bcnested = "BusHierarchy/Bus Creator";
set_param(bcnested, OutDataTypeStr="Bus: NestedBus")
set_param(bcnested, NonVirtualBus="on")
set_param(mdl, SimulationCommand="Update")

NestedBus is now a nonvirtual bus.

If you do not save the bus objects, you must recreate the bus objects when you reopen the model. For information on how to save the bus objects, see Specify Bus Properties with Bus Objects.

Extended Examples

Simulink Bus Capabilities

Work with buses in components, simplify component interfaces, and streamline common bus workflows.

• Open Live Script

Ports

Input

Port_1 — Input element to include in bus

scalar | vector | matrix | array | bus

The input ports accept the elements to include in the bus. The number of input ports is driven by the Number of inputs parameter.

Each Bus Creator block supports these combinations of input elements:

• Signals only

• Signals and signal buses

• Messages only

• Messages and buses

• Buses only

You can specify variable-size input signals with upper bounds smaller than the upper bounds of the variable-size signals that the corresponding Bus Creator block input ports can accept. To configure the upper bounds of variable-size signals that Bus Creator block input ports accept, use a Simulink.BusElement object. For more information, see Simulink.BusElement. Variable-size input signals must have the same dimensionality as the variable-size signals that the corresponding Bus Creator block input ports are configured to accept.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | string | Boolean | fixed point | enumerated | bus
Complex Number Support: Yes

Output

Port_1 — Output virtual or nonvirtual bus

scalar | bus

The output bus is composed of the input elements.

The Output as nonvirtual bus parameter specifies whether the output bus is a virtual or nonvirtual bus. The software treats a virtual bus as its constituent elements and a nonvirtual bus as a scalar.

For more information about the types of buses, see Composite Interface Guidelines.

Data Types: single | double | half | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | string | Boolean | fixed point | enumerated | bus
Complex Number Support: Yes

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Number of inputs — Number of block inputs

2 (default) | integer

To create a bus, the number of block inputs must be an integer greater than or equal to 2.

Increasing the number of inputs adds unconnected input ports to the block. Before you simulate the model, make sure that an input connects to each input port.

If each input port is already connected, you can add an input port to the Bus Creator block by connecting another line to it.

Interactively adding a port updates the Number of inputs parameter value and adds the new input to the Inputs list.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Specify the number of inputs as an integer greater than or equal to 2.

Parameter:	Inputs
Values:	'2' (default) | integer in quotes
Data Types:	char | string

Example: set_param(gcb, Inputs="3")

Inputs — Block inputs

list of element names

The Inputs list provides the elements that enter the block, including the elements of nested buses. An arrow next to an element indicates that an input is a bus. To display the contents of that bus, click the arrow.

To reorder the input elements, select one or more top-level elements from the Inputs list. Then, drag the elements to a new position.

To add or remove input elements, click or , respectively. Before you simulate the model, make sure that each input port is connected.

To refresh the list of input elements, click . For example, refresh the list of input elements when:

• You rename an input element while the dialog box is open.

• You add, remove, or reorder unnamed input elements. The Bus Creator block names these elements signalN, where N is the number of the corresponding block port. When the corresponding block port changes, the autogenerated name changes.

To filter the input elements by name with or without regular expressions, enter the search term in the Filter box. Do not enclose the search term in quotation marks. Optionally, display the filtered results as a flat list by clicking . The flat list uses dot notation to reflect the bus hierarchy. By default, the filtered results appear in a hierarchical tree.

Before R2025a: To filter with regular expressions, click . Then, select Enable regular expression.

To select the source of an element that enters the block, select the element in the list. Then, click . The Property Inspector shows the parameters of the selected source block. When you select the source block of multiple elements, the Property Inspector shows the parameters of the source block that has focus.

You cannot undo or redo changes to the Inputs list.

Tips

• When you set Output data type to a Simulink.Bus object, to display which Simulink.BusElement object maps to a top-level input, pause on the top-level input. A parenthetical displays the mapping from the input to the Simulink.BusElement object, for example, Input1 → BusElementObject1.

• Regular expressions let you filter based on whether the input elements match a pattern. For example, to display all elements whose names end with a lowercase t, enter t$ in the Filter box. For more information, see Regular Expressions.

Output data type — Data type of output bus

Inherit: auto (default) | Bus: <object name>

Specify the data type of the output bus.

If you select Bus: <object name>, replace <object name> with the name of a Simulink.Bus object. The bus object must be accessible when you edit the model.

Tips

• To create a Simulink.Bus object using the Type Editor, click .

• To create a Simulink.Bus object from the output bus, use the Simulink.Bus.createObject function.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	OutDataTypeStr
Values:	"Inherit: auto" (default) | "Bus: <object name>"

Example: set_param(gcb, OutDataTypeStr="Bus: control")

Element names — Source of output bus element names

From inputs (default) | From output data type

By default, the Bus Creator block uses the names from the block inputs as the names of the output bus elements, even when you specify a Simulink.Bus object as the data type.

• From inputs — Inherit the names of the output bus elements from the block inputs.

  Before R2025a: Select Use names from inputs instead of from bus object.

• From output data type — Inherit the names of the output bus elements from the specified bus object.

  Before R2025a: Clear Use names from inputs instead of from bus object.

Setting Element names to From output data type:

• Enforces strong data typing.

• Avoids having to enter an element name multiple times: in the bus object and in the model. Entering the name multiple times can create accidental element name mismatches.

• Supports the array of buses requirement to have consistent element names across array elements.

When you set Element names to From inputs, consider setting the Element name mismatch configuration parameter to error. This configuration parameter checks that the input element names match the corresponding names in the bus object.

Dependencies

To enable this parameter, set Output data type to a Simulink.Bus object.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	InheritFromInputs
Values:	"on" (default) | "off"

Example: set_param(gcb, InheritFromInputs="off")

This table maps the interactive values to the equivalent programmatic values of this parameter.

Element names Value	InheritFromInputs Value
From inputs (default)	"on" (default)
From output data type	"off"

Output as nonvirtual bus — Option to output nonvirtual bus

off (default) | on

Select this parameter to output a nonvirtual bus.

A nonvirtual bus is analogous to a structure in C code. Select this parameter to:

• Construct an array of buses.

• Have bus data cross MATLAB Function block or Stateflow^® chart boundaries.

• Package bus data as structures in generated C code.

• Interface with external code through an S-function.

• Reduce the number of function arguments passed to a subcomponent in generated code.

All elements in a nonvirtual bus must have the same sample time, even if the elements of the associated Simulink.Bus object specify inherited sample times for some elements. Any operation resulting in a nonvirtual bus containing elements with different sample rates generates an error. To change the sample time of an element or bus that has a different sample time than the other nonvirtual bus input elements, use a Rate Transition block. For details, see Modify Sample Times for Nonvirtual Buses.

Dependencies

To enable this parameter, set Output data type to a Simulink.Bus object.

Programmatic Use

To set the block parameter value programmatically, use the set_param function.

Parameter:	NonVirtualBus
Values:	"off" (default) | "on"

Example: set_param(gcb, NonVirtualBus="on")

Block Characteristics

Data Types	Boolean | bus | double | enumerated | fixed point | half | integer | single | string
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	yes
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Actual data type or capability support depends on block implementation.

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

This block has one default HDL architecture.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is 0. For more details, see OutputPipeline (HDL Coder).

Data Type Support

This block supports these data types for HDL code generation:

Input Port	Dimension	Fixed-Point	Floating-Point	Built-in Integers	Bus	Boolean	Complex Signal
Port_1	Scalar Vector Matrix (up to 2-D)	Yes	Half Single Double	Yes	Yes	Yes	Yes

Optimizations

You can use these HDL Coder optimizations to optimize the speed, area, and I/Os.

Area Optimization

Optimization	Description
Resource Sharing (HDL Coder)	Resource sharing is an area optimization in which HDL Coder identifies multiple functionally equivalent resources and replaces them with a single resource.
Streaming (HDL Coder)	Streaming is an area optimization in which HDL Coder transforms a vector data path to a scalar data path (or to several smaller-sized vector data paths).

Speed Optimization

Optimization	Description
Distributed Pipelining (HDL Coder)	Distributed pipelining, or register retiming, is a speed optimization that moves existing delays in a design to reduce the critical path while preserving functional behavior. For the Sqrt block, HDL Coder distributes pipeline registers around the blocks instead of within them.
Clock-Rate Pipelining (HDL Coder)	Clock-rate pipelining is an optimization framework in HDL Coder that allows other speed and area optimizations to introduce latency at the clock rate.
Adaptive Pipelining (HDL Coder)	Adaptive pipelining optimization creates patterns or combination of blocks with registers that can improve the achievable clock frequency and reduce the area usage on the FPGA boards by inserting pipeline registers to the blocks in your design.
Critical Path Estimation (HDL Coder)	To quickly identify the most likely critical path in your design, use Critical Path Estimation. Critical path estimation speeds up the iterative process of finding the critical path. To know blocks that are characterized in critical path estimation, see Characterized Blocks (HDL Coder).

HDL Modeling Guidelines

For best practices, see:

• Use Buses to Improve Readability of Model and Generate HDL Code (HDL Coder)

Limitations and Considerations

To learn more about using buses for HDL code generation, see Buses (HDL Coder).

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion

Design and simulate fixed-point systems using Fixed-Point Designer™.

Actual data type or capability support depends on block implementation.

Version History

Introduced before R2006a

R2025a: Specify parameter values more easily and intuitively

The Bus Creator block now provides more intuitive and streamlined editing for block parameter values.

You can now specify Bus Creator block parameter values in the Property Inspector. You can continue to use the Block Parameters dialog box.

This table describes the parameter and interaction changes.

Goal	Action Before R2025a	Action Since R2025a
Apply changes.	Make your changes. Then, click Apply or OK.	Make your changes. When you specify block parameter values in the Property Inspector or Block Parameters dialog box, the changes apply immediately.
Filter with regular expressions.	Click , and select Enable regular expression. Then, enter a search term in the Filter by name box.	Enter a search term in the Filter box.
Show filtered results as a flat list.	Click Show filtered results as a flat list.	Click .
Find source blocks.	Select one or more inputs. Then, click Find. The software highlights the source blocks.	Select one or more inputs. Then, click . The software selects the source blocks, and the Property Inspector displays the parameters of the block that has focus.
Add block input.	Click Add.	Click .
Refresh the list of inputs.	Click Refresh.	Click .
Remove block input.	Click Remove.	Click .
Reorder inputs.	Select one or more adjacent inputs. Then, click Up or Down until the inputs are in the desired position.	Select one or more inputs. Then, drag the inputs to the desired position.
Open the Type Editor to define a Simulink.Bus object.	Click , and set Mode to Bus object. Then, click the Edit button.	Click .
Specify the source of the output bus element names.	Select or clear the Use names from inputs instead of from bus object check box.	Set Element names to From inputs or From output data type.
Rename inputs.	Edit the signal labels of the input elements. Alternatively, select Require names of inputs to match names above, select an element, and specify a new name in the Rename selected signal box.	Edit the signal labels of the input elements.

R2025a: Require names of inputs to match names above and Rename selected signal have been removed

The Require names of inputs to match names above and Rename selected signal parameters have been removed. To specify the required names, use a Simulink.Bus object instead.

1. Set Output data type to a Simulink.Bus object.

2. Choose one of these options:

   • To inherit the output bus element names from the specified Simulink.Bus object, set Element names to From output data type.

   • To require the input names to match the names from the specified Simulink.Bus object, set Element names to From inputs and set the Element name mismatch configuration parameter to error. This configuration parameter checks that the input names match the corresponding names in the Simulink.Bus object.

Setting Inputs to a comma-separated list of element names is not recommended.

For more information, see Element names and Element name mismatch.

R2023a: Variable-size input signal upper bound can be smaller than upper bound of variable-size signal that the corresponding Bus Creator block input port can accept

Starting in R2023a, the Bus Creator block supports variable-size input signals with upper bounds smaller than upper bounds of variable-size signals that the corresponding Bus Creator block input ports can accept.

This enhancement allows you to use variable-size input signals when the upper bounds of input signals are not equal to the upper bounds of variable-size signals that the corresponding Bus Creator block input ports can accept.
