Neural network model for classification

A `ClassificationNeuralNetwork`

object is a trained, feedforward,
and fully connected neural network for classification. The first fully connected layer of the
neural network has a connection from the network input (predictor data `X`

), and each
subsequent layer has a connection from the previous layer. Each fully connected layer
multiplies the input by a weight matrix (`LayerWeights`

) and
then adds a bias vector (`LayerBiases`

). An
activation function follows each fully connected layer (`Activations`

and
`OutputLayerActivation`

). The final fully connected layer and the subsequent
softmax activation function produce the network's output, namely classification scores
(posterior probabilities) and predicted labels. For more information, see Neural Network Structure.

Create a `ClassificationNeuralNetwork`

object by using `fitcnet`

.

`LayerSizes`

— Sizes of fully connected layerspositive integer vector

This property is read-only.

Sizes of the fully connected layers in the neural network model, returned as a
positive integer vector. The *i*th element of
`LayerSizes`

is the number of outputs in the
*i*th fully connected layer of the neural network model.

`LayerSizes`

does not include the size of the final fully
connected layer. This layer always has *K* outputs, where
*K* is the number of classes in `Y`

.

**Data Types: **`single`

| `double`

`LayerWeights`

— Learned layer weightscell array

This property is read-only.

Learned layer weights for the fully connected layers, returned as a cell array.
The *i*th entry in the cell array corresponds to the layer weights
for the *i*th fully connected layer. For example,
`Mdl.LayerWeights{1}`

returns the weights for the first fully
connected layer of the model `Mdl`

.

`LayerWeights`

includes the weights for the final fully
connected layer.

**Data Types: **`cell`

`LayerBiases`

— Learned layer biasescell array

This property is read-only.

Learned layer biases for the fully connected layers, returned as a cell array. The
*i*th entry in the cell array corresponds to the layer biases for
the *i*th fully connected layer. For example,
`Mdl.LayerBiases{1}`

returns the biases for the first fully
connected layer of the model `Mdl`

.

`LayerBiases`

includes the biases for the final fully connected
layer.

**Data Types: **`cell`

`Activations`

— Activation functions for fully connected layers`'relu'`

| `'tanh'`

| `'sigmoid'`

| `'none'`

| cell array of character vectorsThis property is read-only.

Activation functions for the fully connected layers of the neural network model, returned as a character vector or cell array of character vectors with values from this table.

Value | Description |
---|---|

`'relu'` | Rectified linear unit (ReLU) function — Performs a threshold operation on each element of the input, where any value less than zero is set to zero, that is, $$f\left(x\right)=\{\begin{array}{cc}x,& x\ge 0\\ 0,& x<0\end{array}$$ |

`'tanh'` | Hyperbolic tangent (tanh) function — Applies the |

`'sigmoid'` | Sigmoid function — Performs the following operation on each input element: $$f(x)=\frac{1}{1+{e}^{-x}}$$ |

`'none'` | Identity function — Returns each input element without performing any transformation, that is, |

If

`Activations`

contains only one activation function, then it is the activation function for every fully connected layer of the neural network model, excluding the final fully connected layer. The activation function for the final fully connected layer is always softmax (`OutputLayerActivation`

).If

`Activations`

is an array of activation functions, then the*i*th element is the activation function for the*i*th layer of the neural network model.

**Data Types: **`char`

| `cell`

`OutputLayerActivation`

— Activation function for final fully connected layer`'softmax'`

This property is read-only.

Activation function for the final fully connected layer, returned as
`'softmax'`

. The function takes each input
*x _{i}* and returns the following, where

$$f({x}_{i})=\frac{\mathrm{exp}({x}_{i})}{{\displaystyle \sum _{j=1}^{K}\mathrm{exp}({x}_{j})}}.$$

The results correspond to the predicted classification scores (or posterior probabilities).

`ModelParameters`

— Parameter values used to train model`NeuralNetworkParams`

objectThis property is read-only.

Parameter values used to train the `ClassificationNeuralNetwork`

model, returned as a `NeuralNetworkParams`

object.
`ModelParameters`

contains parameter values such as the
name-value arguments used to train the neural network classifier.

Access the properties of `ModelParameters`

by using dot
notation. For example, access the function used to initialize the fully connected
layer weights of a model `Mdl`

by using
`Mdl.ModelParameters.LayerWeightsInitializer`

.

`ConvergenceInfo`

— Convergence informationstructure array

This property is read-only.

Convergence information, returned as a structure array.

Field | Description |
---|---|

`Iterations` | Number of training iterations used to train the neural network model |

`TrainingLoss` | Training cross-entropy loss for the returned model, or
`resubLoss(Mdl,'LossFun','crossentropy')` for model
`Mdl` |

`Gradient` | Gradient of the loss function with respect to the weights and biases at the iteration corresponding to the returned model |

`Step` | Step size at the iteration corresponding to the returned model |

`Time` | Total time spent across all iterations (in seconds) |

`ValidationLoss` | Validation cross-entropy loss for the returned model |

`ValidationChecks` | Maximum number of times in a row that the validation loss was greater than or equal to the minimum validation loss |

`ConvergenceCriterion` | Criterion for convergence |

`History` | See `TrainingHistory` |

**Data Types: **`struct`

`TrainingHistory`

— Training historytable

This property is read-only.

Training history, returned as a table.

Column | Description |
---|---|

`Iteration` | Training iteration |

`TrainingLoss` | Training cross-entropy loss for the model at this iteration |

`Gradient` | Gradient of the loss function with respect to the weights and biases at this iteration |

`Step` | Step size at this iteration |

`Time` | Time spent during this iteration (in seconds) |

`ValidationLoss` | Validation cross-entropy loss for the model at this iteration |

`ValidationChecks` | Running total of times that the validation loss is greater than or equal to the minimum validation loss |

**Data Types: **`table`

`Solver`

— Solver used to train neural network model`'LBFGS'`

This property is read-only.

Solver used to train the neural network model, returned as
`'LBFGS'`

. To create a `ClassificationNeuralNetwork`

model, `fitcnet`

uses a limited-memory
Broyden-Flecter-Goldfarb-Shanno quasi-Newton algorithm (LBFGS) as its loss function
minimization technique, where the software minimizes the cross-entropy loss.

`PredictorNames`

— Predictor variable namescell array of character vectors

This property is read-only.

Predictor variable names, returned as a cell array of character vectors. The order
of the elements of `PredictorNames`

corresponds to the order in which
the predictor names appear in the training data.

**Data Types: **`cell`

`CategoricalPredictors`

— Categorical predictor indicesvector of positive integers |

`[]`

This property is read-only.

Categorical predictor indices, returned as a
vector of positive integers. Assuming that the predictor data contains observations in
rows, `CategoricalPredictors`

contains index values corresponding to
the columns of the predictor data that contain categorical predictors. If none of the
predictors are categorical, then this property is empty
(`[]`

).

**Data Types: **`double`

`ExpandedPredictorNames`

— Expanded predictor namescell array of character vectors

This property is read-only.

Expanded predictor names, returned as a cell array of character vectors. If the
model uses encoding for categorical variables, then
`ExpandedPredictorNames`

includes the names that describe the
expanded variables. Otherwise, `ExpandedPredictorNames`

is the same
as `PredictorNames`

.

**Data Types: **`cell`

`X`

— Unstandardized predictorsnumeric matrix | table

This property is read-only.

Unstandardized predictors used to train the neural network model, returned as a
numeric matrix or table. `X`

retains its original orientation, with
observations in rows or columns depending on the value of the
`ObservationsIn`

name-value argument in the call to
`fitcnet`

.

**Data Types: **`single`

| `double`

| `table`

`ClassNames`

— Unique class namesnumeric vector | categorical vector | logical vector | character array | cell array of character vectors

This property is read-only.

Unique class names used in training, returned as a numeric vector, categorical
vector, logical vector, character array, or cell array of character vectors.
`ClassNames`

has the same data type as the class labels
`Y`

. (The software
treats string arrays as cell arrays of character vectors.)
`ClassNames`

also determines the class order.

**Data Types: **`single`

| `double`

| `categorical`

| `logical`

| `char`

| `cell`

`ResponseName`

— Response variable namecharacter vector

This property is read-only.

Response variable name, returned as a character vector.

**Data Types: **`char`

`Y`

— Class labelsnumeric vector | categorical vector | logical vector | character array | cell array of character vectors

This property is read-only.

Class labels used to train the model, returned as a numeric vector, categorical
vector, logical vector, character array, or cell array of character vectors.
`Y`

has the same data type as the response variable used to train
the model. (The software treats string arrays
as cell arrays of character vectors.)

Each row of `Y`

represents the classification of the
corresponding observation in `X`

.

**Data Types: **`single`

| `double`

| `categorical`

| `logical`

| `char`

| `cell`

`NumObservations`

— Number of observationspositive numeric scalar

This property is read-only.

Number of observations in the training data stored in `X`

and
`Y`

, returned as a positive numeric scalar.

**Data Types: **`double`

`RowsUsed`

— Rows used in fitting`[]`

| logical vectorThis property is read-only.

Rows of the original training data used in fitting the model, returned as a logical vector. This property is empty if all rows are used.

**Data Types: **`logical`

`W`

— Observation weightsnumeric vector

This property is read-only.

Observation weights used to train the model, returned as an
*n*-by-1 numeric vector. *n* is the number of
observations (`NumObservations`

).

The software normalizes the observation weights specified in the
`Weights`

name-value argument so that the elements of
`W`

within a particular class sum up to the prior probability of
that class.

**Data Types: **`single`

| `double`

`Cost`

— Misclassification costnumeric square matrix

This property is read-only.

Misclassification cost, returned as a numeric square matrix, where
`Cost(i,j)`

is the cost of classifying a point into class
`j`

if its true class is `i`

. The cost matrix
always has this form: `Cost(i,j) = 1`

if `i ~= j`

,
and `Cost(i,j) = 0`

if `i = j`

. The rows correspond
to the true class and the columns correspond to the predicted class. The order of the
rows and columns of `Cost`

corresponds to the order of the classes
in `ClassNames`

.

**Data Types: **`double`

`Prior`

— Prior probabilitiesnumeric vector

This property is read-only.

Prior probabilities for each class, returned as a numeric vector. The order of the
elements of `Prior`

corresponds to the elements of
`ClassNames`

.

**Data Types: **`double`

`ScoreTransform`

— Score transformationcharacter vector | function handle

Score transformation, specified as a character vector or function handle. `ScoreTransform`

represents a built-in transformation function or a function handle for transforming predicted classification scores.

To change the score transformation function to * function*, for example, use dot notation.

For a built-in function, enter a character vector.

Mdl.ScoreTransform = '

*function*';This table describes the available built-in functions.

Value Description `'doublelogit'`

1/(1 + *e*^{–2x})`'invlogit'`

log( *x*/ (1 –*x*))`'ismax'`

Sets the score for the class with the largest score to 1, and sets the scores for all other classes to 0 `'logit'`

1/(1 + *e*^{–x})`'none'`

or`'identity'`

*x*(no transformation)`'sign'`

–1 for *x*< 0

0 for*x*= 0

1 for*x*> 0`'symmetric'`

2 *x*– 1`'symmetricismax'`

Sets the score for the class with the largest score to 1, and sets the scores for all other classes to –1 `'symmetriclogit'`

2/(1 + *e*^{–x}) – 1For a MATLAB

^{®}function or a function that you define, enter its function handle.Mdl.ScoreTransform = @

*function*;must accept a matrix (the original scores) and return a matrix of the same size (the transformed scores).`function`

**Data Types: **`char`

| `function_handle`

`compact` | Reduce size of machine learning model |

`compareHoldout` | Compare accuracies of two classification models using new data |

`crossval` | Cross-validate machine learning model |

`edge` | Classification edge for neural network classifier |

`loss` | Classification loss for neural network classifier |

`margin` | Classification margins for neural network classifier |

`partialDependence` | Compute partial dependence |

`plotPartialDependence` | Create partial dependence plot (PDP) and individual conditional expectation (ICE) plots |

`predict` | Classify observations using neural network classifier |

`resubEdge` | Resubstitution classification edge |

`resubLoss` | Resubstitution classification loss |

`resubMargin` | Resubstitution classification margin |

`resubPredict` | Classify training data using trained classifier |

Train a neural network classifier, and assess the performance of the classifier on a test set.

Read the sample file `CreditRating_Historical.dat`

into a table. The predictor data consists of financial ratios and industry sector information for a list of corporate customers. The response variable consists of credit ratings assigned by a rating agency. Preview the first few rows of the data set.

```
creditrating = readtable("CreditRating_Historical.dat");
head(creditrating)
```

`ans=`*8×8 table*
ID WC_TA RE_TA EBIT_TA MVE_BVTD S_TA Industry Rating
_____ ______ ______ _______ ________ _____ ________ _______
62394 0.013 0.104 0.036 0.447 0.142 3 {'BB' }
48608 0.232 0.335 0.062 1.969 0.281 8 {'A' }
42444 0.311 0.367 0.074 1.935 0.366 1 {'A' }
48631 0.194 0.263 0.062 1.017 0.228 4 {'BBB'}
43768 0.121 0.413 0.057 3.647 0.466 12 {'AAA'}
39255 -0.117 -0.799 0.01 0.179 0.082 4 {'CCC'}
62236 0.087 0.158 0.049 0.816 0.324 2 {'BBB'}
39354 0.005 0.181 0.034 2.597 0.388 7 {'AA' }

Because each value in the `ID`

variable is a unique customer ID, that is, `length(unique(creditrating.ID))`

is equal to the number of observations in `creditrating`

, the `ID`

variable is a poor predictor. Remove the `ID`

variable from the table, and convert the `Industry`

variable to a `categorical`

variable.

```
creditrating = removevars(creditrating,"ID");
creditrating.Industry = categorical(creditrating.Industry);
```

Convert the `Rating`

response variable to an ordinal `categorical`

variable.

creditrating.Rating = categorical(creditrating.Rating, ... ["AAA","AA","A","BBB","BB","B","CCC"],"Ordinal",true);

Partition the data into training and test sets. Use approximately 80% of the observations to train a neural network model, and 20% of the observations to test the performance of the trained model on new data. Use `cvpartition`

to partition the data.

rng("default") % For reproducibility of the partition c = cvpartition(creditrating.Rating,"Holdout",0.20); trainingIndices = training(c); % Indices for the training set testIndices = test(c); % Indices for the test set creditTrain = creditrating(trainingIndices,:); creditTest = creditrating(testIndices,:);

Train a neural network classifier by passing the training data `creditTrain`

to the `fitcnet`

function.

`Mdl = fitcnet(creditTrain,"Rating")`

Mdl = ClassificationNeuralNetwork PredictorNames: {'WC_TA' 'RE_TA' 'EBIT_TA' 'MVE_BVTD' 'S_TA' 'Industry'} ResponseName: 'Rating' CategoricalPredictors: 6 ClassNames: [AAA AA A BBB BB B CCC] ScoreTransform: 'none' NumObservations: 3146 LayerSizes: 10 Activations: 'relu' OutputLayerActivation: 'softmax' Solver: 'LBFGS' ConvergenceInfo: [1×1 struct] TrainingHistory: [1000×7 table] Properties, Methods

`Mdl`

is a trained `ClassificationNeuralNetwork`

classifier. You can use dot notation to access the properties of `Mdl`

. For example, you can specify `Mdl.TrainingHistory`

to get more information about the training history of the neural network model.

Evaluate the performance of the classifier on the test set by computing the test set classification error. Visualize the results by using a confusion matrix.

testAccuracy = 1 - loss(Mdl,creditTest,"Rating", ... "LossFun","classiferror")

testAccuracy = 0.8003

confusionchart(creditTest.Rating,predict(Mdl,creditTest))

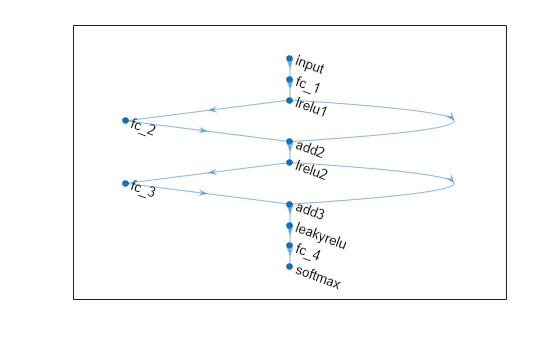

Specify the structure of a neural network classifier, including the size of the fully connected layers.

Load the `ionosphere`

data set, which includes radar signal data. `X`

contains the predictor data, and `Y`

is the response variable, whose values represent either good ("g") or bad ("b") radar signals.

`load ionosphere`

Separate the data into training data (`XTrain`

and `YTrain`

) and test data (`XTest`

and `YTest`

) by using a stratified holdout partition. Reserve approximately 30% of the observations for testing, and use the rest of the observations for training.

rng("default") % For reproducibility of the partition cvp = cvpartition(Y,"Holdout",0.3); XTrain = X(training(cvp),:); YTrain = Y(training(cvp)); XTest = X(test(cvp),:); YTest = Y(test(cvp));

Train a neural network classifier. Specify to have 35 outputs in the first fully connected layer and 20 outputs in the second fully connected layer. By default, both layers use a rectified linear unit (ReLU) activation function. You can change the activation functions for the fully connected layers by using the `Activations`

name-value argument.

Mdl = fitcnet(XTrain,YTrain, ... "LayerSizes",[35 20])

Mdl = ClassificationNeuralNetwork ResponseName: 'Y' CategoricalPredictors: [] ClassNames: {'b' 'g'} ScoreTransform: 'none' NumObservations: 246 LayerSizes: [35 20] Activations: 'relu' OutputLayerActivation: 'softmax' Solver: 'LBFGS' ConvergenceInfo: [1×1 struct] TrainingHistory: [47×7 table] Properties, Methods

Access the weights and biases for the fully connected layers of the trained classifier by using the `LayerWeights`

and `LayerBiases`

properties of `Mdl`

. The first two elements of each property correspond to the values for the first two fully connected layers, and the third element corresponds to the values for the final fully connected layer with a softmax activation function for classification. For example, display the weights and biases for the second fully connected layer.

Mdl.LayerWeights{2}

`ans = `*20×35*
0.0481 0.2501 -0.1535 -0.0934 0.0760 -0.0579 -0.2465 1.0411 0.3712 -1.2007 1.1162 0.4296 0.4045 0.5005 0.8839 0.4624 -0.3154 0.3454 -0.0487 0.2648 0.0732 0.5773 0.4286 0.0881 0.9468 0.2981 0.5534 1.0518 -0.0224 0.6894 0.5527 0.7045 -0.6124 0.2145 -0.0790
-0.9489 -1.8343 0.5510 -0.5751 -0.8726 0.8815 0.0203 -1.6379 2.0315 1.7599 -1.4153 -1.4335 -1.1638 -0.1715 1.1439 -0.7661 1.1230 -1.1982 -0.5409 -0.5821 -0.0627 -0.7038 -0.0817 -1.5773 -1.4671 0.2053 -0.7931 -1.6201 -0.1737 -0.7762 -0.3063 -0.8771 1.5134 -0.4611 -0.0649
-0.1910 0.0246 -0.3511 0.0097 0.3160 -0.0693 0.2270 -0.0783 -0.1626 -0.3478 0.2765 0.4179 0.0727 -0.0314 -0.1798 -0.0583 0.1375 -0.1876 0.2518 0.2137 0.1497 0.0395 0.2859 -0.0905 0.4325 -0.2012 0.0388 -0.1441 -0.1431 -0.0249 -0.2200 0.0860 -0.2076 0.0132 0.1737
-0.0415 -0.0059 -0.0753 -0.1477 -0.1621 -0.1762 0.2164 0.1710 -0.0610 -0.1402 0.1452 0.2890 0.2872 -0.2616 -0.4204 -0.2831 -0.1901 0.0036 0.0781 -0.0826 0.1588 -0.2782 0.2510 -0.1069 -0.2692 0.2306 0.2521 0.0306 0.2524 -0.4218 0.2478 0.2343 -0.1031 0.1037 0.1598
1.1848 1.6142 -0.1352 0.5774 0.5491 0.0103 0.0209 0.7219 -0.8643 -0.5578 1.3595 1.5385 1.0015 0.7416 -0.4342 0.2279 0.5667 1.1589 0.7100 0.1823 0.4171 0.7051 0.0794 1.3267 1.2659 0.3197 0.3947 0.3436 -0.1415 0.6607 1.0071 0.7726 -0.2840 0.8801 0.0848
0.2486 -0.2920 -0.0004 0.2806 0.2987 -0.2709 0.1473 -0.2580 -0.0499 -0.0755 0.2000 0.1535 -0.0285 -0.0520 -0.2523 -0.2505 -0.0437 -0.2323 0.2023 0.2061 -0.1365 0.0744 0.0344 -0.2891 0.2341 -0.1556 0.1459 0.2533 -0.0583 0.0243 -0.2949 -0.1530 0.1546 -0.0340 -0.1562
-0.0516 0.0640 0.1824 -0.0675 -0.2065 -0.0052 -0.1682 -0.1520 0.0060 0.0450 0.0813 -0.0234 0.0657 0.3219 -0.1871 0.0658 -0.2103 0.0060 -0.2831 -0.1811 -0.0988 0.2378 -0.0761 0.1714 -0.1596 -0.0011 0.0609 0.4003 0.3687 -0.2879 0.0910 0.0604 -0.2222 -0.2735 -0.1155
-0.6192 -0.7804 -0.0506 -0.4205 -0.2584 -0.2020 -0.0008 0.0534 1.0185 -0.0307 -0.0539 -0.2020 0.0368 -0.1847 0.0886 -0.4086 -0.4648 -0.3785 0.1542 -0.5176 -0.3207 0.1893 -0.0313 -0.5297 -0.1261 -0.2749 -0.6152 -0.5914 -0.3089 0.2432 -0.3955 -0.1711 0.1710 -0.4477 0.0718
0.5049 -0.1362 -0.2218 0.1637 -0.1282 -0.1008 0.1445 0.4527 -0.4887 0.0503 0.1453 0.1316 -0.3311 -0.1081 -0.7699 0.4062 -0.1105 -0.0855 0.0630 -0.1469 -0.2533 0.3976 0.0418 0.5294 0.3982 0.1027 -0.0973 -0.1282 0.2491 0.0425 0.0533 0.1578 -0.8403 -0.0535 -0.0048
1.1109 -0.0466 0.4044 0.6366 0.1863 0.5660 0.2839 0.8793 -0.5497 0.0057 0.3468 0.0980 0.3364 0.4669 0.1466 0.7883 -0.1743 0.4444 0.4535 0.1521 0.7476 0.2246 0.4473 0.2829 0.8881 0.4666 0.6334 0.3105 0.9571 0.2808 0.6483 0.1180 -0.4558 1.2486 0.2453
⋮

Mdl.LayerBiases{2}

`ans = `*20×1*
0.6147
0.1891
-0.2767
-0.2977
1.3655
0.0347
0.1509
-0.4839
-0.3960
0.9248
⋮

The final fully connected layer has two outputs, one for each class in the response variable. The number of layer outputs corresponds to the first dimension of the layer weights and layer biases.

size(Mdl.LayerWeights{end})

`ans = `*1×2*
2 20

size(Mdl.LayerBiases{end})

`ans = `*1×2*
2 1

To estimate the performance of the trained classifier, compute the test set classification error for `Mdl`

.

testError = loss(Mdl,XTest,YTest, ... "LossFun","classiferror")

testError = 0.0774

accuracy = 1 - testError

accuracy = 0.9226

`Mdl`

accurately classifies approximately 92% of the observations in the test set.

`ClassificationPartitionedModel`

| `CompactClassificationNeuralNetwork`

| `edge`

| `fitcnet`

| `loss`

| `margin`

| `predict`

Tiene una versión modificada de este ejemplo. ¿Desea abrir este ejemplo con sus modificaciones?

Ha hecho clic en un enlace que corresponde a este comando de MATLAB:

Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

Select web siteYou can also select a web site from the following list:

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

- América Latina (Español)
- Canada (English)
- United States (English)

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
