# partialDependence

Compute partial dependence

## Syntax

``pd = partialDependence(Mdl,Vars)``
``pd = partialDependence(Mdl,Vars,Labels)``
``pd = partialDependence(___,Data)``
``pd = partialDependence(___,Name,Value)``
``[pd,x,y] = partialDependence(___)``

## Description

example

````pd = partialDependence(Mdl,Vars)` computes the partial dependence `pd` between the predictor variables listed in `Vars` and the responses predicted by using the regression model `Mdl`, which contains predictor data.```

example

````pd = partialDependence(Mdl,Vars,Labels)` computes the partial dependence `pd` between the predictor variables listed in `Vars` and the scores for the classes specified in `Labels` by using the classification model `Mdl`, which contains predictor data.```
````pd = partialDependence(___,Data)` uses new predictor data in `Data`. You can specify `Data` in addition to any of the input argument combinations in the previous syntaxes.```

example

````pd = partialDependence(___,Name,Value)` uses additional options specified by one or more name-value pair arguments. For example, if you specify `'UseParallel','true'`, the `partialDependence` function uses parallel computing to perform the partial dependence calculations.```
````[pd,x,y] = partialDependence(___)` also returns `x` and `y`, which contain the query points of the first and second predictor variables in `Vars`, respectively. If you specify one variable in `Vars`, then `partialDependence` returns an empty matrix (`[]`) for `y`.```

## Examples

collapse all

Train a naive Bayes classification model with the `fisheriris` data set, and compute partial dependence values that show the relationship between the predictor variable and the predicted scores (posterior probabilities) for multiple classes.

Load the `fisheriris` data set, which contains species (`species`) and measurements (`meas`) on sepal length, sepal width, petal length, and petal width for 150 iris specimens. The data set contains 50 specimens from each of three species: setosa, versicolor, and virginica.

`load fisheriris`

Train a naive Bayes classification model with `species` as the response and `meas` as predictors.

`Mdl = fitcnb(meas,species,'PredictorNames',["Sepal Length","Sepal Width","Petal Length","Petal Width"]);`

Compute partial dependence values on the third predictor variable (petal length) of the scores predicted by `Mdl` for all three classes of `species`. Specify the class labels by using the `ClassNames` property of `Mdl`.

`[pd,x] = partialDependence(Mdl,3,Mdl.ClassNames);`

pd contains the partial dependence values for the query points x. You can plot the computed partial dependence values by using plotting functions such as `plot` and `bar`. Plot `pd` against `x` by using the `bar` function.

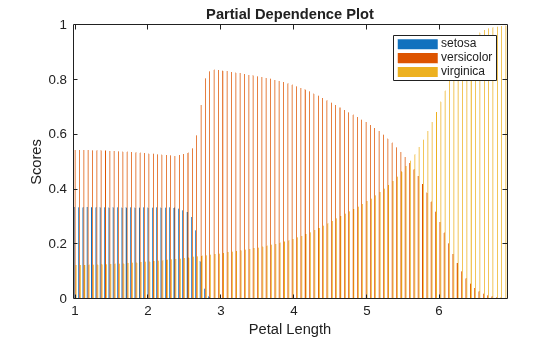

```bar(x,pd) legend(Mdl.ClassNames) xlabel("Petal Length") ylabel("Scores") title("Partial Dependence Plot")```

According to this model, the probability of `virginica` increases with petal length. The probability of `setosa` is about 0.33, from where petal length is 0 to around 2.5, and then the probability drops to almost 0.

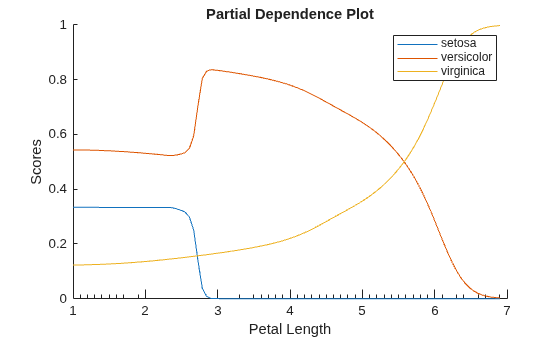

Alternatively, you can use the `plotPartialDependence` function to compute and plot partial dependence values.

`plotPartialDependence(Mdl,3,Mdl.ClassNames)`

Train an ensemble of classification models and compute partial dependence values on two variables for multiple classes. Then plot the partial dependence values for each class.

Load the `census1994` data set, which contains US yearly salary data, categorized as `<=50K` or `>50K`, and several demographic variables.

`load census1994`

Extract a subset of variables to analyze from the table `adultdata`.

```X = adultdata(1:500,{'age','workClass','education_num','marital_status','race', ... 'sex','capital_gain','capital_loss','hours_per_week','salary'});```

Train a random forest of classification trees by using `fitcensemble` and specifying `'Method'` as `'Bag'`. For reproducibility, use a template of trees created by using `templateTree` with the `'Reproducible'` option.

```rng('default') t = templateTree('Reproducible',true); Mdl = fitcensemble(X,'salary','Method','Bag','Learners',t);```

Inspect the class names in `Mdl`.

`Mdl.ClassNames`
```ans = 2×1 categorical <=50K >50K ```

Compute partial dependence values of the scores on the predictors `age` and `education_num` for both classes (`<=50K` and `>50K`). Specify the number of observations to sample as 100.

`[pd,x,y] = partialDependence(Mdl,{'age','education_num'},Mdl.ClassNames,'NumObservationsToSample',100);`

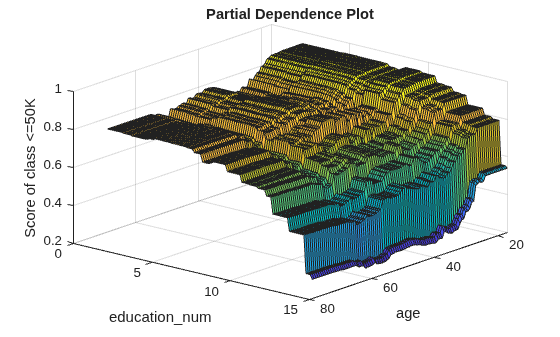

Create a surface plot of the partial dependence values for the first class (`<=50K`) by using the `surfl` function.

```figure surf(x,y,squeeze(pd(1,:,:))) xlabel('age') ylabel('education\_num') zlabel('Score of class <=50K') title('Partial Dependence Plot') view([130 30]) % Modify the viewing angle```

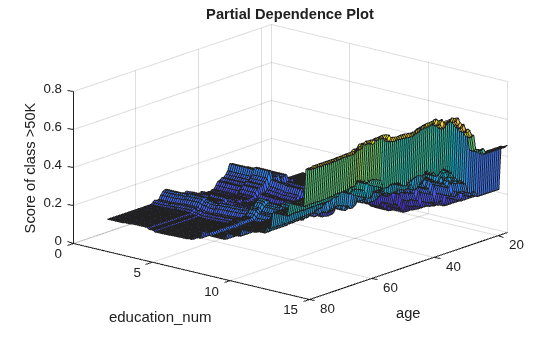

Create a surface plot of the partial dependence values for the second class (`>50K`).

```figure surf(x,y,squeeze(pd(2,:,:))) xlabel('age') ylabel('education\_num') zlabel('Score of class >50K') title('Partial Dependence Plot') view([130 30]) % Modify the viewing angle```

The two plots show different partial dependence patterns depending on the class.

Train a support vector machine (SVM) regression model using the `carsmall` data set, and compute the partial dependence on two predictor variables. Then, create a figure that shows the partial dependence on the two variables along with the histogram on each variable.

Load the `carsmall` data set.

```load carsmall ```

Create a table that contains `Weight`, `Cylinders`, `Displacement`, and `Horsepower`.

```Tbl = table(Weight,Cylinders,Displacement,Horsepower); ```

Train an SVM regression model using the predictor variables in `Tbl` and the response variable `MPG`. Use a Gaussian kernel function with an automatic kernel scale.

```Mdl = fitrsvm(Tbl,MPG,'ResponseName','MPG', ... 'CategoricalPredictors','Cylinders','Standardize',true, ... 'KernelFunction','gaussian','KernelScale','auto'); ```

Compute the partial dependence of the predicted response (`MPG`) on the predictor variables `Weight` and `Horsepower`. Specify query points to compute the partial dependence by using the `'QueryPoints'` name-value pair argument.

```numPoints = 10; ptX = linspace(min(Weight),max(Weight),numPoints)'; ptY = linspace(min(Horsepower),max(Horsepower),numPoints)'; [pd,x,y] = partialDependence(Mdl,{'Weight','Horsepower'},'QueryPoints',[ptX ptY]); ```

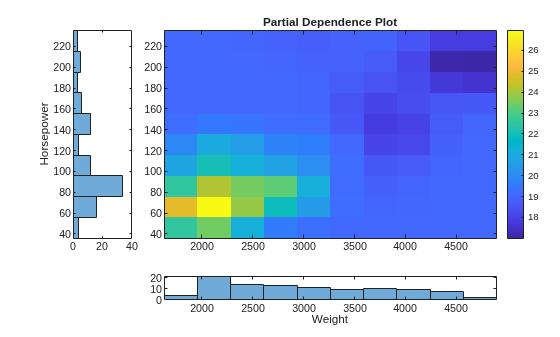

Create a figure that contains a 5-by-5 tiled chart layout. Plot the partial dependence on the two variables by using the `imagesc` function. Then draw the histogram for each variable by using the `histogram` function. Specify the edges of the histograms so that the centers of the histogram bars align with the query points. Change the axes properties to align the axes of the plots.

```t = tiledlayout(5,5,'TileSpacing','compact'); ax1 = nexttile(2,[4,4]); imagesc(x,y,pd) title('Partial Dependence Plot') colorbar('eastoutside') ax1.YDir = 'normal'; ax2 = nexttile(22,[1,4]); dX = diff(ptX(1:2)); edgeX = [ptX-dX/2;ptX(end)+dX]; histogram(Weight,edgeX); xlabel('Weight') xlim(ax1.XLim); ax3 = nexttile(1,[4,1]); dY = diff(ptY(1:2)); edgeY = [ptY-dY/2;ptY(end)+dY]; histogram(Horsepower,edgeY) xlabel('Horsepower') xlim(ax1.YLim); ax3.XDir = 'reverse'; camroll(-90) ```

Each element of `pd` specifies the color for one pixel of the image plot. The histograms aligned with the axes of the image show the distribution of the predictors.

## Input Arguments

collapse all

Machine learning model, specified as a full or compact regression or classification model object, as given in the following tables of supported models.

Regression Model Object

ModelFull or Compact Regression Model Object
Bootstrap aggregation for ensemble of decision trees`TreeBagger`, `CompactTreeBagger`
Ensemble of regression models`RegressionEnsemble`, `RegressionBaggedEnsemble`, `CompactRegressionEnsemble`
Gaussian kernel regression model using random feature expansion`RegressionKernel`
Gaussian process regression`RegressionGP`, `CompactRegressionGP`
Generalized linear mixed-effect model`GeneralizedLinearMixedModel`
Generalized linear model`GeneralizedLinearModel`, `CompactGeneralizedLinearModel`
Linear mixed-effect model`LinearMixedModel`
Linear regression`LinearModel`, `CompactLinearModel`
Linear regression for high-dimensional data`RegressionLinear`
Nonlinear regression`NonLinearModel`
Regression tree`RegressionTree`, `CompactRegressionTree`
Support vector machine regression`RegressionSVM`, `CompactRegressionSVM`

Classification Model Object

ModelFull or Compact Classification Model Object
Discriminant analysis classifier`ClassificationDiscriminant`, `CompactClassificationDiscriminant`
Multiclass model for support vector machines or other classifiers`ClassificationECOC`, `CompactClassificationECOC`
Ensemble of learners for classification`ClassificationEnsemble`, `CompactClassificationEnsemble`, `ClassificationBaggedEnsemble`
Gaussian kernel classification model using random feature expansion`ClassificationKernel`
k-nearest neighbor classifier`ClassificationKNN`
Linear classification model`ClassificationLinear`
Multiclass naive Bayes model`ClassificationNaiveBayes`, `CompactClassificationNaiveBayes`
Support vector machine classifier for one-class and binary classification`ClassificationSVM`, `CompactClassificationSVM`
Binary decision tree for multiclass classification`ClassificationTree`, `CompactClassificationTree`
Bagged ensemble of decision trees`TreeBagger`, `CompactTreeBagger`

If `Mdl` is a compact model object, you must provide the input argument `Data`.

`partialDependence` does not support a model object trained with a sparse matrix. When you train a model, use a full numeric matrix or table for predictor data where rows correspond to individual observations.

Predictor variables, specified as a vector of positive integers, character vector, string scalar, string array, or cell array of character vectors. You can specify one or two predictor variables, as shown in the following tables.

One Predictor Variable

ValueDescription
positive integerIndex value corresponding to the column of the predictor data.
character vector or string scalar

Name of a predictor variable. The name must match the entry in `Mdl.PredictorNames`.

Two Predictor Variables

ValueDescription
vector of two positive integersIndex values corresponding to the columns of the predictor data.
string array or cell array of character vectors

Names of predictor variables. Each element in the array is the name of a predictor variable. The names must match the entries in `Mdl.PredictorNames`.

Example: `{'x1','x3'}`

Data Types: `single` | `double` | `char` | `string` | `cell`

Class labels, specified as a categorical or character array, logical or numeric vector, or cell array of character vectors. The values and data types in `Labels` must match those of the class names in the `ClassNames` property of `Mdl` (`Mdl.ClassNames`).

You can specify one or multiple class labels.

This argument is valid only when `Mdl` is a classification model object.

Example: `{'red','blue'}`

Example: `Mdl.ClassNames([1 3])` specifies `Labels` as the first and third classes in `Mdl`.

Data Types: `single` | `double` | `logical` | `char` | `cell` | `categorical`

Predictor data, specified as a numeric matrix or table. Each row of `Data` corresponds to one observation, and each column corresponds to one variable.

`Data` must be consistent with the predictor data that trained `Mdl`, stored in either `Mdl.X` or `Mdl.Variables`.

• If you trained `Mdl` using a numeric matrix, then `Data` must be a numeric matrix. The variables making up the columns of `Data` must have the same number and order as the predictor variables that trained `Mdl`.

• If you trained `Mdl` using a table (for example, `Tbl`), then `Data` must be a table. All predictor variables in `Data` must have the same variable names and data types as the names and types in `Tbl`. However, the column order of `Data` does not need to correspond to the column order of `Tbl`.

• `partialDependence` does not support a sparse matrix.

If `Mdl` is a compact model object, you must provide `Data`. If `Mdl` is a full model object that contains predictor data and you specify this argument, then `partialDependence` does not use the predictor data in `Mdl` and uses `Data` only.

Data Types: `single` | `double` | `table`

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `partialDependence(Mdl,Vars,Data,'NumObservationsToSample',100,'UseParallel',true)` computes the partial dependence values by using 100 sampled observations in `Data` and executing `for`-loop iterations in parallel.

Number of observations to sample, specified as the comma-separated pair consisting of `'NumObservationsToSample'` and a positive integer. The default value is the number of total observations in either `Mdl` or `Data`. If you specify a value larger than the number of total observations, then `partialDependence` uses all observations.

`partialDependence` samples observations without replacement by using the `datasample` function and uses the sampled observations to compute partial dependence.

Example: `'NumObservationsToSample',100`

Data Types: `single` | `double`

Points to compute partial dependence for numeric predictors, specified as the comma-separated pair consisting of `'QueryPoints'` and a numeric column vector, a numeric two-column matrix, or a cell array of two numeric column vectors.

• If you select one predictor variable in `Vars`, use a numeric column vector.

• If you select two predictor variables in `Vars`:

• Use a numeric two-column matrix to specify the same number of points for each predictor variable.

• Use a cell array of two numeric column vectors to specify a different number of points for each predictor variable.

The default value is a numeric column vector or a numeric two-column matrix, depending on the number of selected predictor variables. Each column contains 100 evenly spaced points between the minimum and maximum values of the sampled observations for the corresponding predictor variable.

You cannot modify `'QueryPoints'` for a categorical variable. The `partialDependence` function uses all categorical values in the selected variable.

If you select one numeric variable and one categorical variable, you can specify `'QueryPoints'` for a numeric variable by using a cell array consisting of a numeric column vector and an empty array.

Example: `'QueryPoints',{pt,[]}`

Data Types: `single` | `double` | `cell`

Flag to run in parallel, specified as the comma-separated pair consisting of `'UseParallel'` and `true` or `false`. If you specify `'UseParallel'` as `true`, the `partialDependence` function executes `for`-loop iterations in parallel by using `parfor` when predicting responses or scores for each observation and averaging them.

Example: `'UseParallel',true`

Data Types: `logical`

## Output Arguments

collapse all

Partial dependence values, returned as a `numX`-by-`numY` numeric matrix (for a regression model) or `numLabels`-by-`numX`-by-`numY` numeric array (for a classification model). `numX` and `numY` are the number of query points of the first and second variables in `Vars`, respectively. `numLabels` is the number of class labels in `Labels`.

The value in `pd(i,j,k)` is the partial dependence value of the query point `x(j)` and `y(k)` for the `i`th class label. `x(j)` is the `j`th query point of the first predictor variable, and `y(k)` is the `k`th query point of the second predictor variable.

Query points of the first predictor variable in `Vars`, returned as a numeric or categorical column vector.

If the predictor variable is numeric, then you can specify the query points by using the `'QueryPoints'` name-value pair argument.

Data Types: `single` | `double` | `categorical`

Query points of the second predictor variable in `Vars`, returned as a numeric or categorical column vector.

If the predictor variable is numeric, then you can specify the query points by using the `'QueryPoints'` name-value pair argument.

Data Types: `single` | `double` | `categorical`

collapse all

### Partial Dependence for Regression Models

Partial dependence[1] represents the relationships between predictor variables and predicted responses in a trained regression model. `partialDependence` computes the partial dependence of predicted responses on a subset of predictor variables by marginalizing over the other variables.

Consider partial dependence on a subset XS of the whole predictor variable set X = {x1, x2, …, xm}. A subset XS includes either one variable or two variables: XS = {xS1} or XS = {xS1, xS2}. Let XC be the complementary set of XS in X. A predicted response f(X) depends on all variables in X:

f(X) = f(XS, XC).

The partial dependence of predicted responses on XS is defined by the expectation of predicted responses with respect to XC:

`${f}^{S}\left({X}^{S}\right)={E}_{C}\left[f\left({X}^{S},{X}^{C}\right)\right]=\int f\left({X}^{S},{X}^{C}\right){p}_{C}\left({X}^{C}\right)d{X}^{C},$`

where pC(XC) is the marginal probability of XC, that is, ${p}_{C}\left({X}^{C}\right)\approx \int p\left({X}^{S},{X}^{C}\right)d{X}^{S}$. Assuming that each observation is equally likely, and the dependence between XS and XC and the interactions of XS and XC in responses is not strong, `partialDependence` estimates the partial dependence by using observed predictor data as follows:

 ${f}^{S}\left({X}^{S}\right)\approx \frac{1}{N}\sum _{i=1}^{N}f\left({X}^{S},{X}_{i}{}^{C}\right),$ (1)

where N is the number of observations and Xi = (XiS, XiC) is the ith observation.

When you call the `partialDependence` function, you can specify a trained model (f(·)) and select variables (XS) by using the input arguments `Mdl` and `Vars`, respectively. `partialDependence` computes the partial dependence at 100 evenly spaced points of XS or the points that you specify by using the `'QueryPoints'` name-value pair argument. You can specify the number (N) of observations to sample from given predictor data by using the `'NumObservationsToSample'` name-value pair argument.

### Partial Dependence Classification Models

In the case of classification models, `partialDependence` computes the partial dependence in the same way as for regression models, with one exception: instead of using the predicted responses from the model, the function uses the predicted scores for the classes specified in `Labels`.

### Weighted Traversal Algorithm

The weighted traversal algorithm[1] is a method to estimate partial dependence for a tree-based model. The estimated partial dependence is the weighted average of response or score values corresponding to the leaf nodes visited during the tree traversal.

Let XS be a subset of the whole variable set X and XC be the complementary set of XS in X. For each XS value to compute partial dependence, the algorithm traverses a tree from the root (beginning) node down to leaf (terminal) nodes and finds the weights of leaf nodes. The traversal starts by assigning a weight value of one at the root node. If a node splits by XS, the algorithm traverses to the appropriate child node depending on the XS value. The weight of the child node becomes the same value as its parent node. If a node splits by XC, the algorithm traverses to both child nodes. The weight of each child node becomes a value of its parent node multiplied by the fraction of observations corresponding to each child node. After completing the tree traversal, the algorithm computes the weighted average by using the assigned weights.

For an ensemble of bagged trees, the estimated partial dependence is an average of the weighted averages over the individual trees.

## Algorithms

`partialDependence` uses a `predict` function to predict responses or scores. `partialDependence` chooses the proper `predict` function according to `Mdl` and runs `predict` with its default settings. For details about each `predict` function, see the `predict` functions in the following two tables. If `Mdl` is a tree-based model (not including a boosted ensemble of trees), then `partialDependence` uses the weighted traversal algorithm instead of the `predict` function. For details, see Weighted Traversal Algorithm.

## References

[1] Friedman, Jerome. H. “Greedy Function Approximation: A Gradient Boosting Machine.” The Annals of Statistics 29, no. 5 (2001): 1189-1232.

[2] Hastie, Trevor, Robert Tibshirani, and Jerome Friedman. The Elements of Statistical Learning. New York, NY: Springer New York, 2009.
