makima

Modified Akima piecewise cubic Hermite interpolation

Syntax

yq = makima(x,y,xq)

pp = makima(x,y)

Description

yq = makima(x,y,xq) performs Modified Akima Interpolation using the values y at sample points x to find interpolated values yq at the query points xq.

pp = makima(x,y) returns a piecewise polynomial structure for use with ppval and the spline utility unmkpp.

Examples

Akima Interpolation of Cosine Data

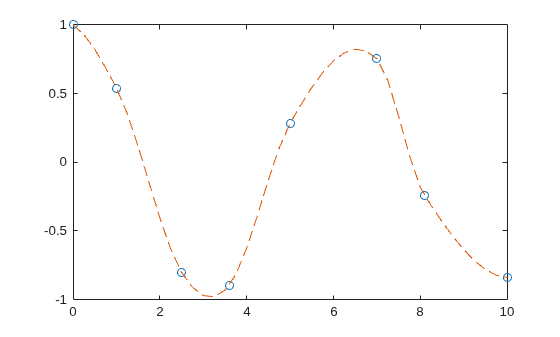

Use makima to interpolate a cosine curve over unevenly spaced sample points.

x = [0 1 2.5 3.6 5 7 8.1 10];
y = cos(x);
xq = 0:.25:10;
yq = makima(x,y,xq);
plot(x,y,'o',xq,yq,'--')

With oscillatory functions, the Akima algorithm flattens the curve near local extrema. To compensate for this flattening, you can add more sample points near the local extrema.

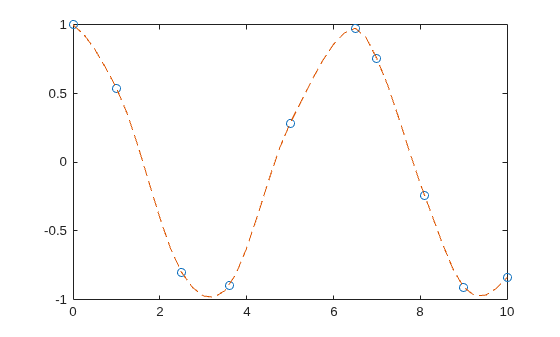

Add sample points near $\mathit{x}=6.5$ and $\mathit{x}=9$ and replot the interpolation.

x = [0 1 2.5 3.6 5 6.5 7 8.1 9 10];
y = cos(x);
xq = 0:.25:10;
yq = makima(x,y,xq);
plot(x,y,'o',xq,yq,'--')

Data Interpolation with spline, pchip, and makima

Compare the interpolation results produced by spline, pchip, and makima for two different data sets. These functions all perform different forms of piecewise cubic Hermite interpolation. Each function differs in how it computes the slopes of the interpolant, leading to different behaviors when the underlying data has flat areas or undulations.

Compare the interpolation results on sample data that connects flat regions. Create vectors of x values, function values at those points y, and query points xq. Compute interpolations at the query points using spline, pchip, and makima. Plot the interpolated function values at the query points for comparison.

x = -3:3;
y = [-1 -1 -1 0 1 1 1];
xq1 = -3:.01:3;
p = pchip(x,y,xq1);
s = spline(x,y,xq1);
m = makima(x,y,xq1);
plot(x,y,'o',xq1,p,'-',xq1,s,'-.',xq1,m,'--')
legend('Sample Points','pchip','spline','makima','Location','SouthEast')

In this case, pchip and makima have similar behavior in that they avoid overshoots and can accurately connect the flat regions.

Perform a second comparison using an oscillatory sample function.

x = 0:15;
y = besselj(1,x);
xq2 = 0:0.01:15;
p = pchip(x,y,xq2);
s = spline(x,y,xq2);
m = makima(x,y,xq2);
plot(x,y,'o',xq2,p,'-',xq2,s,'-.',xq2,m,'--')
legend('Sample Points','pchip','spline','makima')

When the underlying function is oscillatory, spline and makima capture the movement between points better than pchip, which is aggressively flattened near local extrema.

Akima Interpolation with Piecewise Polynomial Structure

Create vectors for the sample points x and values at those points y. Use makima to construct a piecewise polynomial structure for the data.

x = -5:5;
y = [1 1 1 0 0 1 1 2 2 2 2];
pp = makima(x,y)

pp = struct with fields:
      form: 'pp'
    breaks: [-5 -4 -3 -2 -1 0 1 2 3 4 5]
     coefs: [10x4 double]
    pieces: 10
     order: 4
       dim: 1

The structure contains the information for 10 polynomials of order 4 that span the data. pp.coefs(i,:) contains the coefficients for the polynomial that is valid in the region defined by the breakpoints [breaks(i) breaks(i+1)].

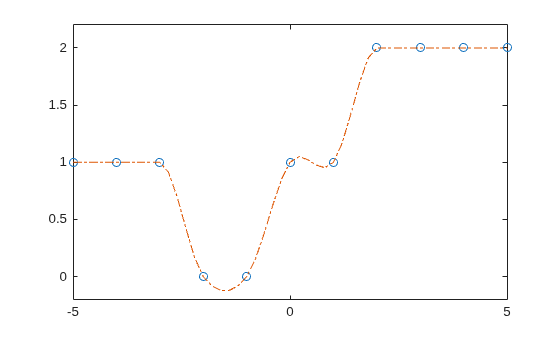

Use the structure with ppval to evaluate the interpolation at several query points, and then plot the results. In regions with three or more constant points, the Akima algorithm connects the points with a straight line.

xq = -5:0.2:5;
m = ppval(pp,xq);
plot(x,y,'o',xq,m,'-.')
ylim([-0.2 2.2])

Input Arguments

x — Sample points

vector

Sample points, specified as a vector. The vector x specifies the points at which the data y is given. The elements of x must be unique.

Data Types: single | double

y — Function values at sample points

vector | matrix | array

Function values at sample points, specified as a numeric vector, matrix, or array. x and y must have the same length.

If y is a matrix or array, then the values in the last dimension, y(:,...,:,j), are taken as the values to match with x. In that case, the last dimension of y must be the same length as x.

Data Types: single | double

xq — Query points

scalar | vector | matrix | array

Query points, specified as a scalar, vector, matrix, or array. The points specified in xq are the x-coordinates for the interpolated function values yq computed by makima.

Data Types: single | double

Output Arguments

yq — Interpolated values at query points

scalar | vector | matrix | array

Interpolated values at query points, returned as a scalar, vector, matrix, or array. The size of yq is related to the sizes of y and xq:

• If y is a vector, then yq has the same size as xq.

• If y is an array of size Ny = size(y), then these conditions apply:

  • If xq is a scalar or vector, then size(yq) returns [Ny(1:end-1) length(xq)].

  • If xq is an array, then size(yq) returns [Ny(1:end-1) size(xq)].

pp — Piecewise polynomial

structure

Piecewise polynomial, returned as a structure. Use this structure with the ppval function to evaluate the interpolating polynomials at one or more query points. The structure has these fields.

Field	Description
form	'pp' for piecewise polynomial
breaks	Vector of length L+1 with strictly increasing elements that represent the start and end of each of L intervals
coefs	L-by-k matrix with each row coefs(i,:) containing the local coefficients of an order k polynomial on the ith interval, [breaks(i),breaks(i+1)]
pieces	Number of pieces, L
order	Order of polynomials
dim	Dimensionality of target

Because the polynomial coefficients in coefs are local coefficients for each interval, you must subtract the lower endpoint of the corresponding knot interval to use the coefficients in a conventional polynomial equation. In other words, for the coefficients [a,b,c,d] on the interval [x1,x2], the corresponding polynomial is

$$f\left(x\right)=a{\left(x-x_1\right)}^3+b{\left(x-x_1\right)}^2+c\left(x-x_1\right)+d.$$

More About

Modified Akima Interpolation

The Akima algorithm for one-dimensional interpolation, described in [1] and [2], performs cubic interpolation to produce piecewise polynomials with continuous first-order derivatives (C1). The algorithm avoids excessive local undulations.

If $${\delta }_i=\frac{v_{i+1}-v_i}{x_{i+1}-x_i}$$ is the slope on interval $$\left[x_i{x}_{i+1}\right)$$, then the value of the derivative $$d_i$$ at the sample point $$x_i$$ is a weighted average of nearby slopes:

$$d_i=\frac{w_1}{w_1+w_2}{\delta }_{i-1}+\frac{w_2}{w_1+w_2}{\delta }_i.$$

In Akima's original formula, the weights are:

$$\begin{array}{l}{w}_1=\left|{\delta }_{i+1}-{\delta }_i\right|,\\ w_2=\left|{\delta }_{i-1}-{\delta }_{i-2}\right|.\end{array}$$

The original Akima algorithm gives equal weight to the points on both sides, evenly dividing an undulation.

When two flat regions with different slopes meet, the modification made to the original Akima algorithm gives more weight to the side where the slope is closer to zero. This modification gives priority to the side that is closer to horizontal, which is more intuitive and avoids overshoot. In particular, whenever there are three or more consecutive collinear points, the algorithm connects them with a straight line and thus avoids an overshoot.

The weights used in the modified Akima algorithm are:

$$\begin{array}{l}{w}_1=\left|{\delta }_{i+1}-{\delta }_i\right|+\frac{\left|{\delta }_{i+1}+{\delta }_i\right|}{2},\\ w_2=\left|{\delta }_{i-1}-{\delta }_{i-2}\right|+\frac{\left|{\delta }_{i-1}+{\delta }_{i-2}\right|}{2}.\end{array}$$

Compared to the spline algorithm, the Akima algorithm produces fewer undulations and is better suited to deal with quick changes between flat regions. Compared to the pchip algorithm, the Akima algorithm is not as aggressively flattened and is therefore still able to deal with oscillatory data.

References

[1] Akima, Hiroshi. "A new method of interpolation and smooth curve fitting based on local procedures." Journal of the ACM (JACM) , 17.4, 1970, pp. 589–602.

[2] Akima, Hiroshi. "A method of bivariate interpolation and smooth surface fitting based on local procedures." Communications of the ACM , 17.1, 1974, pp. 18–20.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Input x must be strictly increasing.

• Code generation does not remove y entries with NaN values.

• If you generate code for the pp = makima(x,y) syntax, then you cannot input pp to the ppval function in MATLAB^®. To create a MATLAB pp structure from a pp structure created by the code generator:

  • In code generation, use unmkpp to return the piecewise polynomial details to MATLAB.

  • In MATLAB, use mkpp to create the pp structure.

• If you supply xq, and if y has a variable-size and is not a variable-length vector, then the orientation of vector outputs in the generated code might not match the orientation in MATLAB.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The makima function fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray (Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

Usage notes and limitations:

• The makima(x,y) syntax is not supported for distributed arrays.

For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced in R2019b
