getAnalysisOptions

Get analysis options of displays in Filter Analyzer app

Desde R2024a

contraer todo en la página

Sintaxis

opts = getAnalysisOptions(fa)
opts = getAnalysisOptions(fa,DisplayNums=dispnums)

Descripción

opts = getAnalysisOptions(fa) returns the analysis options for the active display in the Filter Analyzer app fa.

ejemplo

opts = getAnalysisOptions(fa,DisplayNums=dispnums) returns the analysis options for the displays specified in dispnums.

Ejemplos

contraer todo

Abrir script en vivo

Design a lowpass filter, and display it in the Filter Analyzer app.

d1 = designfilt("lowpassfir", ...
    PassbandFrequency=0.45,StopbandFrequency=0.55);
fa = filterAnalyzer(d1);

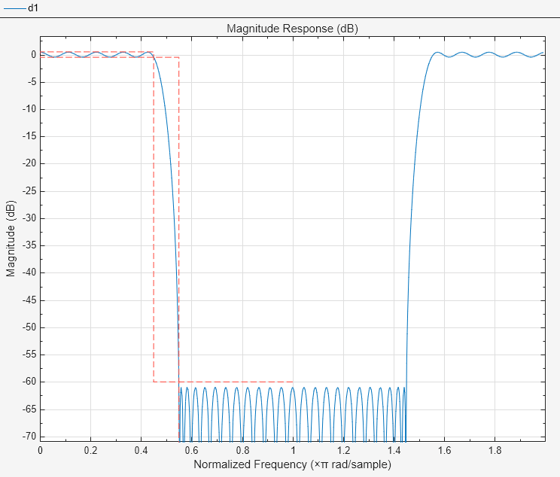

Get the analysis options of the display. Update the options so the app displays responses over a two-sided frequency range using 1024 FFT points.

opts = getAnalysisOptions(fa);
opts.NFFT = 1024;
opts.FrequencyRange = "twosided";
setAnalysisOptions(fa,opts)

Argumentos de entrada

contraer todo

Filter Analyzer app handle, specified as a filterAnalyzer object.

Display numbers, specified as an integer or a vector of integers. If you do not specify this argument, Filter Analyzer works on the active display. Use display identification numbers to target displays when using other Filter Analyzer functions. Identification numbers appear above the plotting area of the app, on the tabs that correspond to the different displays.

Ejemplo: [1 5]

Tipos de datos: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

contraer todo

Filter analysis options, returned as a filterAnalysisOptions object or a cell array.

  • If dispnums is a scalar or unspecified, opts is a filterAnalysisOptions object.

  • If dispnums is a vector, opts is a cell array of filterAnalysisOptions objects. opts has the same number of elements as dispnums. Each element of the cell array corresponds to the options specified for a display.

Historial de versiones

Introducido en R2024a
