Crear bloques mediante System objects de MATLAB
Un System object es un tipo especial de clase de MATLAB®. Los System objects están diseñados específicamente para implementar y simular sistemas dinámicos con entradas que cambian con el tiempo. Los System objects permiten implementar algoritmos mediante el lenguaje de MATLAB. El bloque MATLAB System permite usar System objects en Simulink.
Categorías
- Personalizar System objects para Simulink
Personalice System object para usarlo en un bloque MATLAB System
- Implementar bloques con System objects
Utilice un System object en Simulink con bloques MATLAB System
Ejemplos destacados

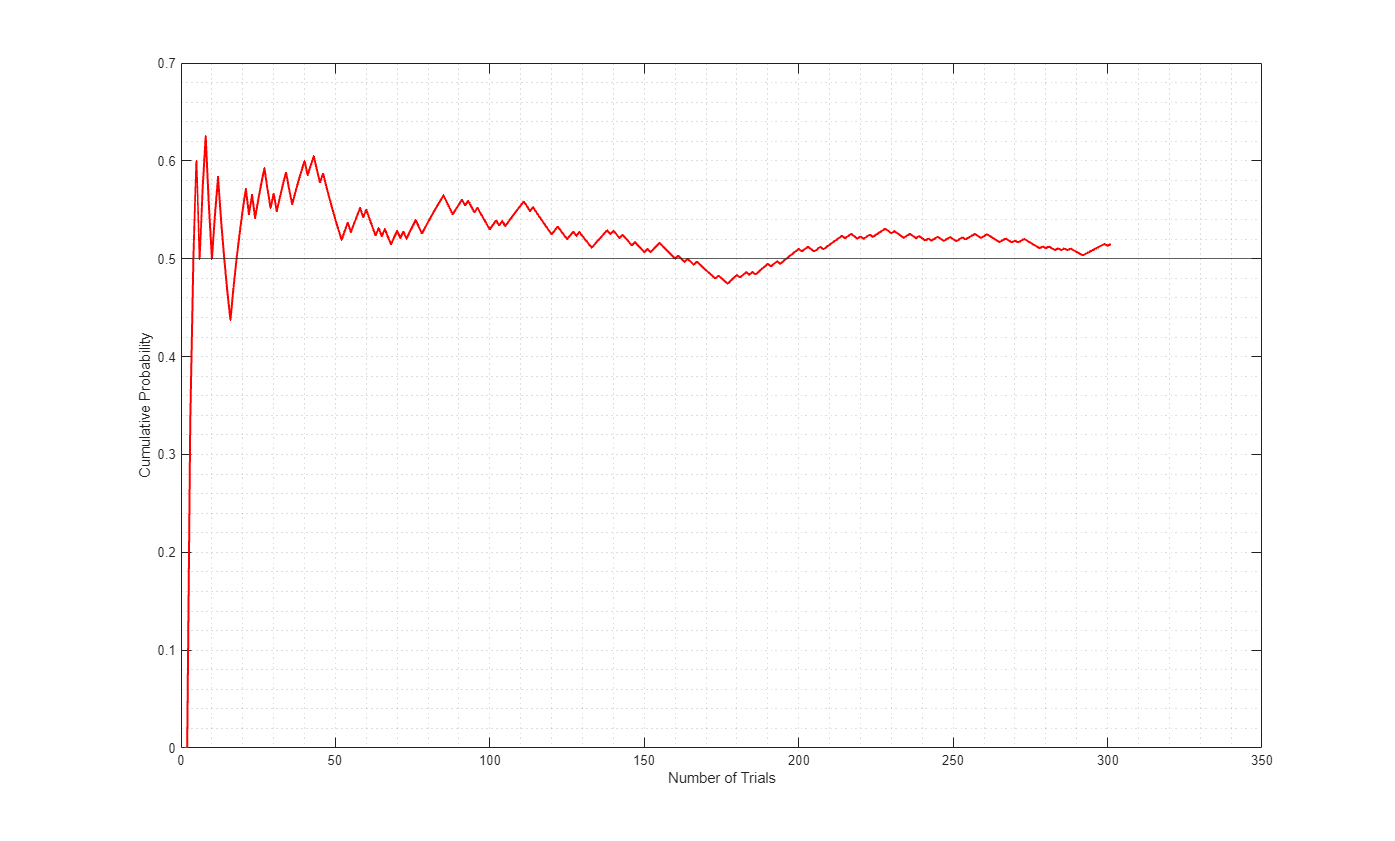

Illustration of Law of Large Numbers
Use MATLAB System blocks to illustrate the law of large numbers.

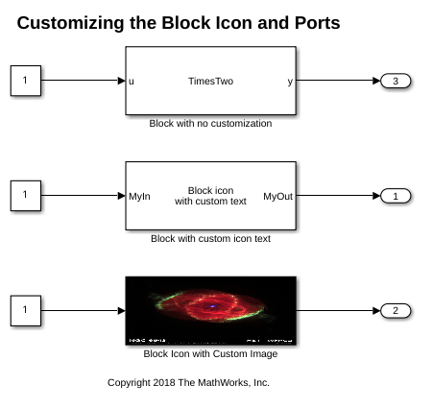

Customize MATLAB System Block Appearance
Customize the appearance of the MATLAB System block. The model contains three MATLAB System blocks. The first block does not have any customization for block appearance. By default, the block shows the name of the System object™. The argument names in the System object stepImpl method provide the port labels. The second block shows custom text and custom port labels on the block icon. The third block shows a custom block icon image.
