Video Formats and Interfaces
R2026bHardware video processing algorithms operate on serial data. For information on the serial protocol used in Vision HDL Toolbox™, see Streaming Pixel Interface.
You can simulate hardware-friendly streaming-pixel designs alongside frame-based designs. For instance, use frame-based algorithms, such as those designed using Computer Vision Toolbox™ or Image Processing Toolbox™, to verify a hardware-optimized design. Use the Frame To Pixels and Pixels To Frame blocks to convert video between frame-based and streaming-pixel formats.
Blocks
 | Frame To Pixels | Convert frame-based video to pixel stream |
 | Pixels To Frame | Convert pixel stream to frame-based video |
 | Pixel Control Bus Creator | Create control signal bus for use with Vision HDL Toolbox blocks |
 | Pixel Control Bus Selector | Select signals from control signal bus used by Vision HDL Toolbox blocks |
 | From pixelcontrol | Convert pixelcontrol bus to AXI-Stream control
signals (Since R2026b) |
 | To pixelcontrol | Convert AXI4-Stream control signals to pixelcontrol
bus (Since R2026b) |
 | Measure Timing | Measure timing of pixel control bus input |
 | HV Counter | Count active dimensions of pixel stream |
 | Pixel Stream Aligner | Align two streams of pixel data |
 | Pixel Stream FIFO | Buffer input stream to create image lines that have contiguous valid pixels |
 | ROI Selector | Select a region of interest (ROI) from pixel stream |
 | Image Resizer | Change dimensions of image in pixel stream (Since R2023a) |
Objects
Functions
Topics
Pixel-Stream Modeling
- Streaming Pixel Interface
Pixel stream control signal protocol used by Vision HDL Toolbox blocks and objects. - Configure Blanking Intervals
How to diagnose and fix problems related to the number of inactive pixels between lines and frames.
Frame-Based Modeling
- Getting Started with Frame-Based Image Filter
Design a hardware-targeted image filter using frame-based functions. (Since R2024b) - Frame-Based Modeling of Video Processing for Hardware
Design a frame-based edge detection algorithm and generate sample-based HDL code from the design. (Since R2024b) - Frame-Based Video Pipeline
Design a frame-based video processing pipeline in MATLAB® and generate sample-based HDL code from the design. (Since R2024b) - Frame-Based Video Pipeline in Simulink
Design a frame-based video processing pipeline in Simulink® and generate sample-based HDL code from the design. (Since R2024b)
In Simulink
- Configure the Simulink Environment for HDL Video Processing
Set up a Simulink model for HDL image and video processing. - Integrate Vision HDL Blocks into Camera Link System
This example shows how to design a Vision HDL Toolbox™ algorithm for integration into an existing system that uses the Camera Link® signal protocol. - Pixel Control Bus
Data type details of the pixelcontrol bus.
In MATLAB
- Pixel Control Structure
Data type details of the pixel control structure. - Convert Camera Control Signals to pixelcontrol Format
This example shows how to convert Camera Link® signals to thepixelcontrolstructure, invert the pixels with a Vision HDL Toolbox™ object, and convert the control signals back to the Camera Link format.
Featured Examples

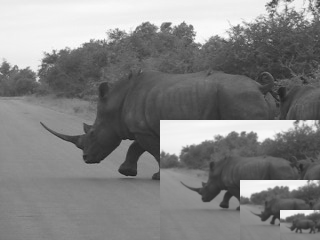

Image Pyramid
Generate multi-level image pyramid pixel streams from an input stream. This model derives multiple pixel streams by downsampling the original image in both the horizontal and vertical directions using Gaussian filtering. This type of filter avoids aliasing artifacts. The implementation uses an architecture suitable for FPGAs.

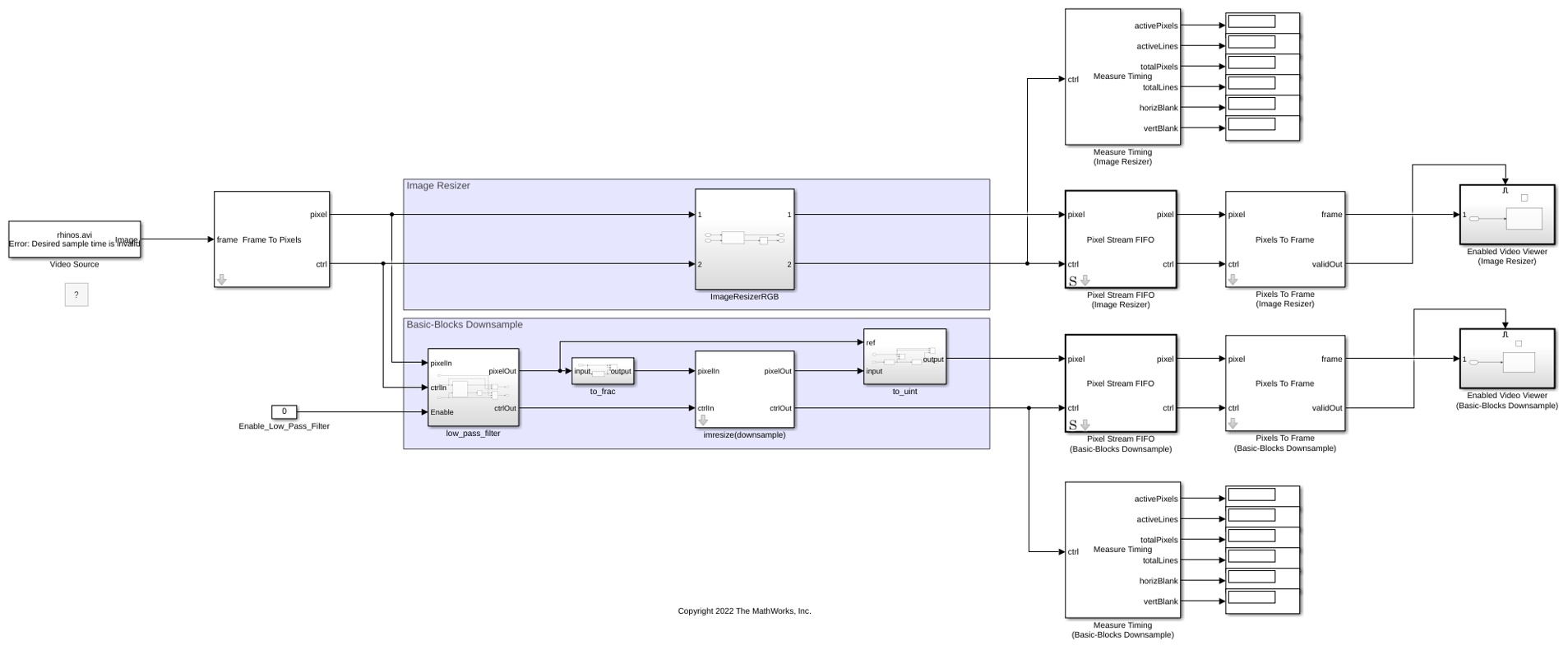

Change Image Size
Downsample a multicomponent image by using the Image Resizer block. The example also shows how to implement custom bicubic and Lanczos-2 interpolation algorithms for FPGAs by using basic Simulink blocks.

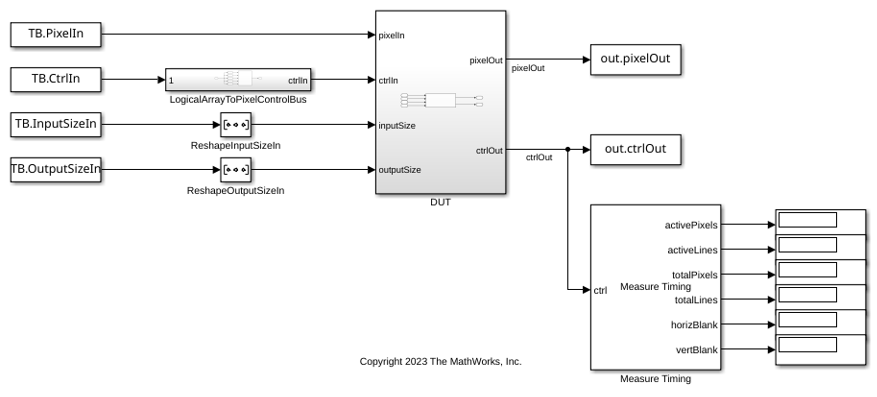

Runtime Image Resizing
Configure and use the Image Resizer block with variable input and output image sizes.
Upscale Image by Two
Upscale a multicomponent image by a factor of two and interpolate with a Gaussian filter.
Filter Multipixel Video Streams
Design filters that operate on a multipixel input video stream. Use multipixel streaming to process high-resolution or high-frame-rate video with the same synthesized clock frequency as a single-pixel streaming interface. Multipixel streaming also improves simulation speed and throughput because fewer iterations are required to process each frame, while maintaining the hardware benefits of a streaming interface.

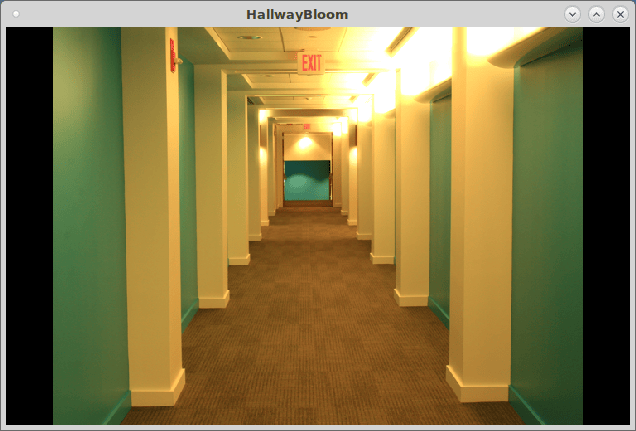

MultiPixel-MultiComponent Video Streaming
Work with a multipixel-multicomponent pixel stream. Multipixel-multicomponent streaming enables real-time processing of high-resolution or high-frame-rate color video streams.

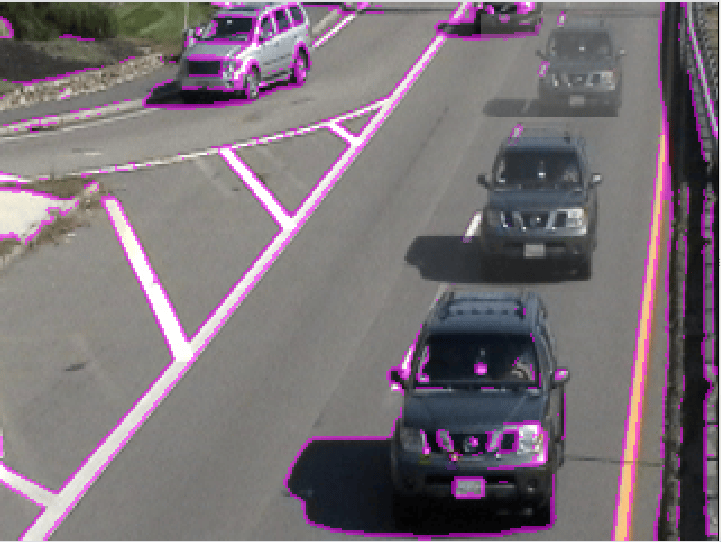

Buffer Bursty Data Using Pixel Stream FIFO Block
Interface with bursty pixel streams, such as those from DMA and Camera Link® sources, using the Pixel Stream FIFO block.

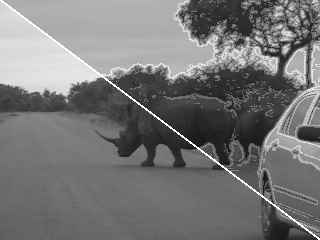

Edge Detection and Image Overlay
Detect and highlight object edges in a video stream.

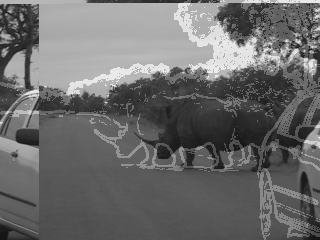

Edge Detection and Image Overlay with Impaired Frame
Introduce impairments in order to test a design with imperfect video input.
