predict

Compute deep learning network output for inference

Syntax

Y = predict(net,X)

Y = predict(net,X1,...,XM)

[Y1,...,YN] = predict(___)

[Y1,...,YK] = predict(___,Outputs=layerNames)

[___] = predict(___,Name=Value)

[___,state] = predict(___)

Description

Some deep learning layers behave differently during training and inference (prediction). For example, during training, dropout layers randomly set input elements to zero to help prevent overfitting, but during inference, dropout layers do not change the input.

Y = predict(net,X) returns the network output Y during inference given the input data X and the network net with a single input and a single output.

Y = predict(net,X1,...,XM) returns the network output Y during inference given the M inputs X1, ...,XM and the network net that has M inputs and a single output.

[Y1,...,YN] = predict(___) returns the N outputs Y1, …, YN during inference for networks that have N outputs using any of the previous syntaxes.

[Y1,...,YK] = predict(___,Outputs=layerNames) returns the outputs Y1, …, YK during inference for the specified layers using any of the previous syntaxes.

[___] = predict(___,Name=Value) specifies additional options using one or more name-value arguments.

[___,state] = predict(___) also returns the updated network state.

Examples

Classify Image Using Pretrained Neural Network

Load a pretrained SqueezeNet neural network into the workspace.

[net,classNames] = imagePretrainedNetwork;

Read an image from a PNG file and classify it. To classify the image, first convert it to the data type single.

im = imread("peppers.png");
figure
imshow(im)

X = single(im);
scores = predict(net,X);
[label,score] = scores2label(scores,classNames);

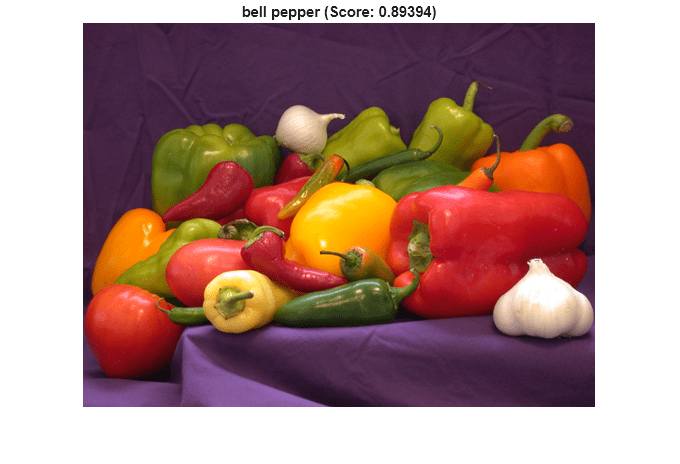

Display the image with the predicted label and corresponding score.

figure
imshow(im)
title(string(label) + " (Score: " + score + ")")

Input Arguments

net — Network for custom training loops or custom pruning loops

dlnetwork object | TaylorPrunableNetwork object

This argument can represent either of these:

• Network for custom training loops, specified as a dlnetwork object.

• Network for custom pruning loops, specified as a TaylorPrunableNetwork object.

To prune a deep neural network, you require the Deep Learning Toolbox™ Model Quantization Library support package. This support package is a free add-on that you can download using the Add-On Explorer. Alternatively, see Deep Learning Toolbox Model Quantization Library.

X — Input data

numeric array | dlarray object

Input data, specified as one of these values:

• Numeric array (since R2023b)

• dlarray object (since R2023b)

• Formatted dlarray object

Tip

Neural networks expect input data with a specific layout. For example, vector-sequence classification networks typically expect a vector-sequence representations to be t-by-c arrays, where t and c are the number of time steps and channels of sequences, respectively. Neural networks typically have an input layer that specifies the expected layout of the data.

Most datastores and functions output data in the layout that the network expects. If your data is in a different layout to what the network expects, then indicate that your data has a different layout by using the InputDataFormats option or by specifying input data as a formatted dlarray object. It is usually easiest to adjust the InputDataFormats training option than to preprocess the input data.

For neural networks that do not have input layers, you must use the InputDataFormats option or use formatted dlarray objects.

For more information, see Deep Learning Data Formats.

layerNames — Layers to extract outputs from

string array | cell array of character vectors

Layers to extract outputs from, specified as a string array or a cell array of character vectors containing the layer names.

• If layerNames(i) corresponds to a layer with a single output, then layerNames(i) is the name of the layer.

• If layerNames(i) corresponds to a layer with multiple outputs, then layerNames(i) is the layer name followed by the / character and the name of the layer output: "layerName/outputName".

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: Y = predict(net,X,InputDataFormats="CBT") makes predictions with sequence data that has format "CBT" (channel, batch, time).

InputDataFormats — Description of input data dimensions

"auto" (default) | string array | cell array of character vectors | character vector

Since R2023b

Description of the input data dimensions, specified as a string array, character vector, or cell array of character vectors.

If InputDataFormats is "auto", then the software uses the formats expected by the network input. Otherwise, the software uses the specified formats for the corresponding network input.

A data format is a string of characters, where each character describes the type of the corresponding data dimension.

The characters are:

• "S" — Spatial

• "C" — Channel

• "B" — Batch

• "T" — Time

• "U" — Unspecified

For example, consider an array containing a batch of sequences where the first, second, and third dimensions correspond to channels, observations, and time steps, respectively. You can specify that this array has the format "CBT" (channel, batch, time).

You can specify multiple dimensions labeled "S" or "U". You can use the labels "C", "B", and "T" once each, at most. The software ignores singleton trailing "U" dimensions after the second dimension.

For a neural networks with multiple inputs net, specify an array of input data formats, where InputDataFormats(i) corresponds to the input net.InputNames(i).

For more information, see Deep Learning Data Formats.

Data Types: char | string | cell

OutputDataFormats — Description of output data dimensions

"auto" (default) | string array | cell array of character vectors | character vector

Since R2023b

Description of the output data dimensions, specified as one of these values:

• "auto" — If the output data has the same number of dimensions as the input data, then the predict function uses the format specified by InputDataFormats. If the output data has a different number of dimensions to the input data, then the predict function automatically permutes the dimensions of the output data so that they are consistent with the network input layers, the InputDataFormats option, or targets expected by the trainnet function.

• Data formats, specified as a string array, character vector, or cell array of character vectors — The predict function uses the specified data formats.

A data format is a string of characters, where each character describes the type of the corresponding data dimension.

The characters are:

• "S" — Spatial

• "C" — Channel

• "B" — Batch

• "T" — Time

• "U" — Unspecified

For example, consider an array containing a batch of sequences where the first, second, and third dimensions correspond to channels, observations, and time steps, respectively. You can specify that this array has the format "CBT" (channel, batch, time).

You can specify multiple dimensions labeled "S" or "U". You can use the labels "C", "B", and "T" once each, at most. The software ignores singleton trailing "U" dimensions after the second dimension.

For more information, see Deep Learning Data Formats.

Data Types: char | string | cell

Acceleration — Performance optimization

"auto" (default) | "mex" | "none"

Performance optimization, specified as one of these values:

• "auto" — Automatically apply a number of optimizations suitable for the input network and hardware resources.

• "mex" — Compile and execute a MEX function. This option is available only when using a GPU. You must store the input data or the network learnable parameters as gpuArray objects. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox). If Parallel Computing Toolbox or a suitable GPU is not available, then the software returns an error.

• "none" — Disable all acceleration.

When you use the "auto" or "mex" option, the software can offer performance benefits at the expense of an increased initial run time. Subsequent calls to the function are typically faster. Use performance optimization when you call the function multiple times using different input data.

When Acceleration is "mex", the software generates and executes a MEX function based on the model and parameters you specify in the function call. A single model can have several associated MEX functions at one time. Clearing the model variable also clears any MEX functions associated with that model.

When Acceleration is "auto", the software does not generate a MEX function.

The "mex" option is available only when you use a GPU. You must have a C/C++ compiler installed and the GPU Coder™ Interface for Deep Learning support package. Install the support package using the Add-On Explorer in MATLAB^®. For setup instructions, see MEX Setup (GPU Coder). GPU Coder is not required.

The "mex" option has these limitations:

• The state output argument is not supported.

• Only single precision is supported. The input data or the network learnable parameters must have underlying type single.

• Networks with inputs that are not connected to an input layer are not supported.

• Traced dlarray objects are not supported. This means that the "mex" option is not supported inside a call to dlfeval.

• Not all layers are supported. For a list of supported layers, see Supported Layers (GPU Coder).

• MATLAB Compiler™ does not support deploying your network when using the "mex" option.

For quantized networks, the "mex" option requires a CUDA^® enabled NVIDIA^® GPU with compute capability 6.1, 6.3, or higher.

Output Arguments

Y — Output data

numeric array | dlarray object

Output data, returned as a one of these values:

• Numeric array (since R2023b)

• Unformatted dlarray object (since R2023b)

• Formatted dlarray object

The data type matches the data type of the input data.

state — Updated network state

table

Updated network state, returned as a table.

The network state is a table with three columns:

• Layer – Layer name, specified as a string scalar.

• Parameter – State parameter name, specified as a string scalar.

• Value – Value of state parameter, specified as a dlarray object.

Layer states contain information calculated during the layer operation to be retained for use in subsequent forward passes of the layer. For example, the cell state and hidden state of LSTM layers, or running statistics in batch normalization layers.

For recurrent layers, such as LSTM layers, with the HasStateInputs property set to 1 (true), the state table does not contain entries for the states of that layer.

Update the state of a dlnetwork using the State property.

Algorithms

Reproducibility

To provide the best performance, deep learning using a GPU in MATLAB is not guaranteed to be deterministic. Depending on your network architecture, under some conditions you might get different results when using a GPU to train two identical networks or make two predictions using the same network and data. If you require determinism when performing deep learning operations using a GPU, use the deep.gpu.deterministicAlgorithms function (since R2024b).

If you use the rng function to set the same random number generator and seed, then predictions made using the CPU are reproducible.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• C++ code generation supports the following syntaxes:

  • Y = predict(net,X)

  • Y = predict(net,X1,...,XM)

  • [Y1,...,YN] = predict(__)

  • [Y1,...,YK] = predict(__,'Outputs',layerNames)

• You can generate generic C/C++ code that does not depends on any third-party libraries for the syntax [__,state] = predict(__)

• Code generation supports tuning the variable Value of the State property. Code generation does not support modifying variables Layer and Parameter of the State property.

• Code generation supports these functions for the State property:

  • height

  • isempty

  • istable

  • istabular

  • ndims

  • numel

  • size

  • width

• For Simulink simulation, code generation does not support extracting and updating the State of a dlnetwork in a MATLAB Function Block. Instead, use a Stateful Predict or a Stateful Classify block.

• The input data X can only have a variable size on time ("T") dimension. Other data dimensions for the input data X must not have variable size. The size must be fixed at code generation time.

• Code generation does not support passing complex-valued input to the predict method of dlnetwork object.

• The dlarray input to the predict method must be a single datatype.

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• GPU code generation supports the following syntaxes:

  • Y = predict(net,X)

  • Y = predict(net,X1,...,XM)

  • [Y1,...,YN] = predict(__)

  • [Y1,...,YK] = predict(__,'Outputs',layerNames)

• You can generate plain CUDA code that is independent of deep learning libraries for the syntax [__,state] = predict(__)

• Code generation supports tuning the variable Value of the State property. Code generation does not support modifying variables Layer and Parameter of the State property.

• Code generation supports these functions for the State property:

  • height

  • isempty

  • istable

  • istabular

  • ndims

  • numel

  • size

  • width

• For Simulink simulation, code generation does not support extracting and updating the State of a dlnetwork in a MATLAB Function Block. Instead, use a Stateful Predict or a Stateful Classify block.

• The input data X can only have a variable size on time ("T") dimension. Other data dimensions for the input data X must not have variable size. The size must be fixed at code generation time.

• Code generation for TensorRT library does not support marking an input layer as an output by using the [Y1,...,YK] = predict(__,'Outputs',layerNames) syntax.

• Code generation does not support passing complex-valued input to the predict method of dlnetwork object.

• The dlarray input to the predict method must be a single datatype.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The predict function supports GPU array input with these usage notes and limitations:

• This function runs on the GPU if either or both of the following conditions are met:

  • Any of the values of the network learnable parameters inside net.Learnables.Value are dlarray objects with underlying data of type gpuArray

  • The input argument X is a dlarray with underlying data of type gpuArray

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2019b

R2023b: Specify numeric arrays and unformatted dlarray objects

Make predictions using numeric arrays and unformatted dlarray objects.

Specify the input and output data formats using the InputDataFormats and OutputDataFormats options, respectively.

R2021a: predict returns state values as dlarray objects

For dlnetwork objects, the state output argument returned by the predict function is a table containing the state parameter names and values for each layer in the network.

Starting in R2021a, the state values are dlarray objects. This change enables better support when using AcceleratedFunction objects. To accelerate deep learning functions that have frequently changing input values, for example, an input containing the network state, the frequently changing values must be specified as dlarray objects.

In previous versions, the state values are numeric arrays.

In most cases, you will not need to update your code. If you have code that requires the state values to be numeric arrays, then to reproduce the previous behavior, extract the data from the state values manually using the extractdata function with the dlupdate function.

state = dlupdate(@extractdata,net.State);
