# rottraj

Generate trajectories between orientation rotation matrices

## Syntax

``[R,omega,alpha] = rottraj(r0,rF,tInterval,tSamples)``
``[R,omega,alpha] = rottraj(r0,rF,tInterval,tSamples,Name,Value)``

## Description

example

````[R,omega,alpha] = rottraj(r0,rF,tInterval,tSamples)` generates a trajectory that interpolates between two orientations, `r0` and `rF`, with points based on the time interval and given time samples.```
````[R,omega,alpha] = rottraj(r0,rF,tInterval,tSamples,Name,Value)` specifies additional parameters using `Name,Value` pair arguments.```

## Examples

collapse all

Define two quaternion waypoints to interpolate between.

```q0 = quaternion([0 pi/4 -pi/8],'euler','ZYX','point'); qF = quaternion([3*pi/2 0 -3*pi/4],'euler','ZYX','point');```

Specify a vector of times to sample the quaternion trajectory.

`tvec = 0:0.01:5;`

Generate the trajectory. Plot the results.

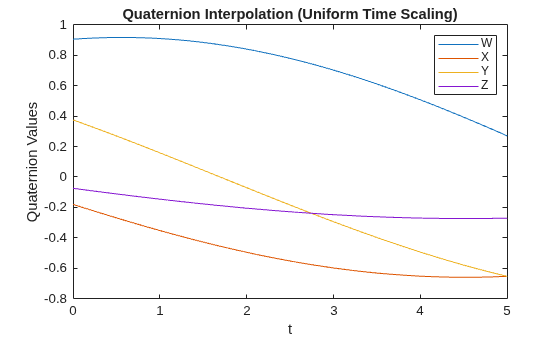

```[qInterp1,w1,a1] = rottraj(q0,qF,[0 5],tvec); plot(tvec,compact(qInterp1)) title('Quaternion Interpolation (Uniform Time Scaling)') xlabel('t') ylabel('Quaternion Values') legend('W','X','Y','Z')``` Define two rotation matrix waypoints to interpolate between.

```r0 = [1 0 0; 0 1 0; 0 0 1]; rF = [0 0 1; 1 0 0; 0 0 0];```

Specify a vector of times to sample the quaternion trajectory.

`tvec = 0:0.1:1;`

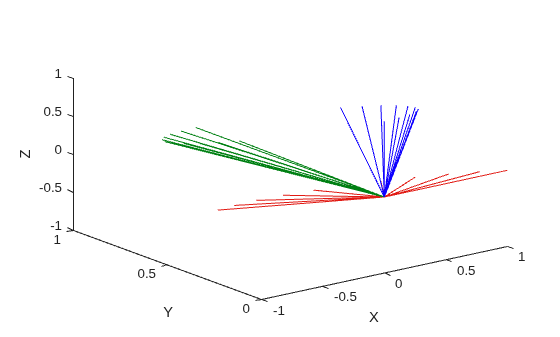

Generate the trajectory. Plot the results using `plotTransforms`. Convert the rotation matrices to quaternions and specify zero translation. The figure shows all the intermediate rotations of the coordinate frame.

```[rInterp1,w1,a1] = rottraj(r0,rF,[0 1],tvec); rotations = rotm2quat(rInterp1); zeroVect = zeros(length(rotations),1); translations = [zeroVect,zeroVect,zeroVect]; plotTransforms(translations,rotations) xlabel('X') ylabel('Y') zlabel('Z')``` ## Input Arguments

collapse all

Initial orientation, specified as a 3-by-3 rotation matrix or `quaternion` object. The function generates a trajectory that starts at the initial orientation, `r0`, and goes to the final orientation, `rF`.

Example: ```quaternion([0 pi/4 -pi/8],'euler','ZYX','point');```

Data Types: `single` | `double`

Final orientation, specified as a 3-by-3 rotation matrix or `quaternion` object. The function generates a trajectory that starts at the initial orientation, `r0`, and goes to the final orientation, `rF`.

Example: ```quaternion([3*pi/2 0 -3*pi/4],'euler','ZYX','point')```

Data Types: `single` | `double`

Start and end times for the trajectory, specified as a two-element vector.

Example: `[0 10]`

Data Types: `single` | `double`

Time samples for the trajectory, specified as an m-element vector. The output trajectory, `rotVector`, is a vector of orientations.

Example: `0:0.01:10`

Data Types: `single` | `double`

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'TimeScaling',[0 1 2; 0 1 0; 0 0 0]`

Time scaling vector and the first two derivatives, specified as the comma-separated pair of `'TimeScaling'` and a 3-by-m vector, where m is the length of `tSamples`. By default, the time scaling is a linear time scaling between the time points in `tInterval`.

For a nonlinear time scaling, specify the values of the time points in the first row. The second and third rows are the velocity and acceleration of the time points, respectively. For example, to follow the path with a linear velocity to the halfway point, and then jump to the end, the time-scaling would be:

```s(1,:) = [0 0.25 0.5 1 1 1] % Position s(2,:) = [1 1 1 0 0 0] % Velocity s(3,:) = [0 0 0 0 0 0] % Acceleration```

Data Types: `single` | `double`

## Output Arguments

collapse all

Orientation trajectory, returned as a 3-by-3-by-m rotation matrix array or `quaternion` object array, where m is the number of points in `tSamples`. The output type depends on the inputs from `r0` and `rF`.

Orientation angular velocity, returned as a 3-by-m matrix, where m is the number of points in `tSamples`.

Orientation angular acceleration, returned as a 3-by-m matrix, where m is the number of points in `tSamples`

## Limitations

• When specifying your `r0` and `rF` input arguments as a 3-by-3 rotation matrix, they are converted to a `quaternion` object before interpolating the trajectory . If your rotation matrix does not follow a right-handed coordinate system or does not have a direct conversion to quaternions, this conversion may result in different initial and final rotations in the output trajectory.
