normspec

Normal density plot shading between specifications

Sintaxis

p = normspec(specs)
p = normspec(specs,mu,sigma)
p = normspec(specs,mu,sigma,region)
[p,h] = normspec(___)

Descripción

ejemplo

p = normspec(specs) plots the standard normal density, shading the portion inside the specification limits given by the two-element vector specs, and returns the probability p of the shaded area. If spec has no lower limit, then set specs(1) to –Inf; if spec has no upper limit, then set specs(2) to Inf.

p = normspec(specs,mu,sigma) uses a normal density with parameters mu and sigma.

ejemplo

p = normspec(specs,mu,sigma,region) specifies the shading region as either 'inside' or 'outside' the specification limits. The default is 'inside'.

[p,h] = normspec(___) also returns a column vector of chart line objects using any of the input arguments in the previous syntaxes. Use h to modify properties of a specific chart line after you create it. For a list of properties, see Line Properties.

Ejemplos

contraer todo

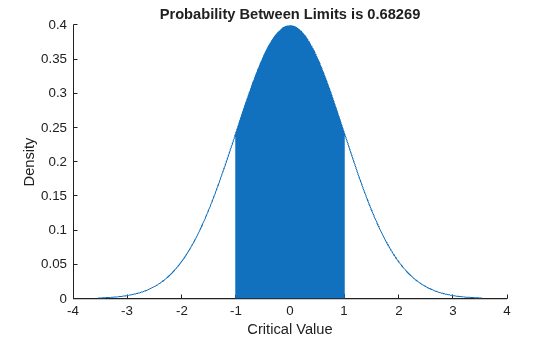

Create a standard normal density plot, shading the portion inside the specification limits [-1,1].

p = normspec([-1,1])

p = 0.6827

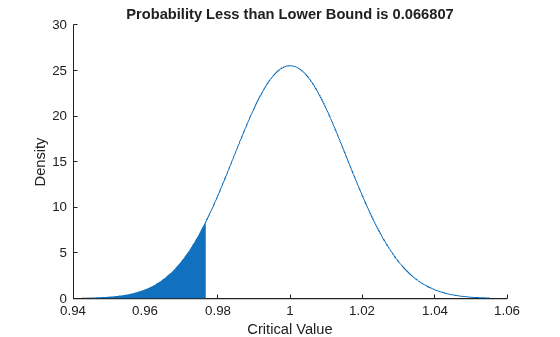

Create a normal density plot, shading the portion outside the specification limits.

For example, consider a production process that fills cans of paint. The average amount of paint in any can is 1 gallon, but variability in the process produces a standard deviation of 2 ounces (2/128 gallons). Create a normal density plot, shading the portion corresponding to the probability that the cans will be filled under specification by 3 or more ounces.

p = normspec([1-3/128,Inf],1,2/128,'outside')

p = 0.0668

Argumentos de entrada

contraer todo

Specification limits, specified as a two-element numeric vector. Set specs(1) to –Inf if there is no lower limit; set specs(2) to Inf if there is no upper limit.

Tipos de datos: single | double

Mean of the normal distribution, specified as a scalar value.

Tipos de datos: single | double

Standard deviation of the normal distribution, specified as a positive scalar value.

Tipos de datos: single | double

Shading region, specified as either 'inside' or 'outside'. The function normspec shades the region either 'inside' or 'outside' the specification limits.

Output Arguments

contraer todo

Probability of the shaded area, returned as a nonnegative scalar value.

One or more chart line objects, returned as a scalar or vector. These objects are unique identifiers that you use to query and modify properties of a specific chart line. For a list of properties, see Line Properties.

Consulte también

|

Introducido antes de R2006a
