# closestPoint

Find closest point on reference path to global point

## Description

example

pathPoints = closestPoint(refPath,points) finds the closest point on the reference path to each of the specified (x,y)-positions points.

[pathPoints,inWindow] = closestPoint(refPath,points) optionally returns a logical vector inWindow, specifying whether each point for the corresponding xy coordinate in points is projected within the search window..

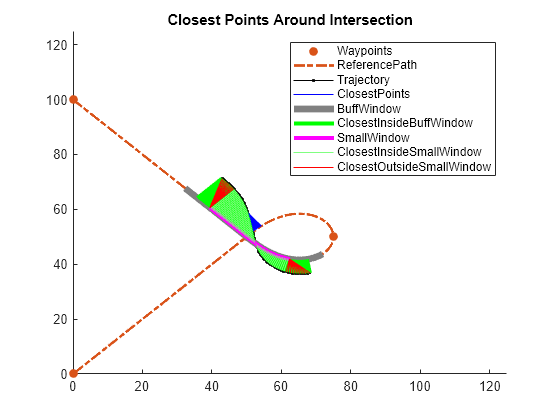

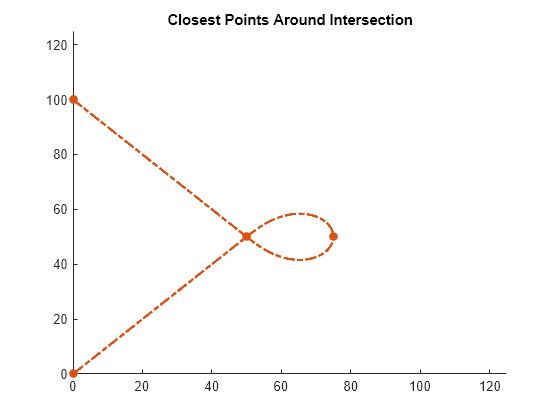

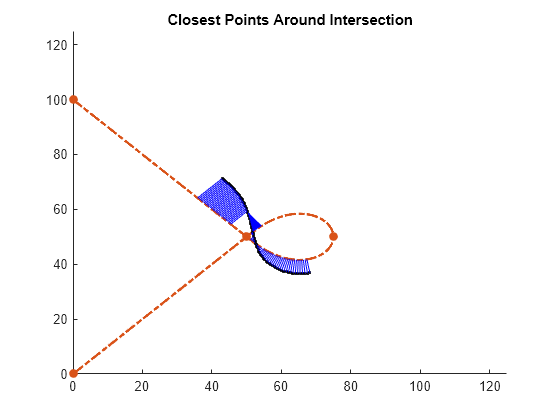

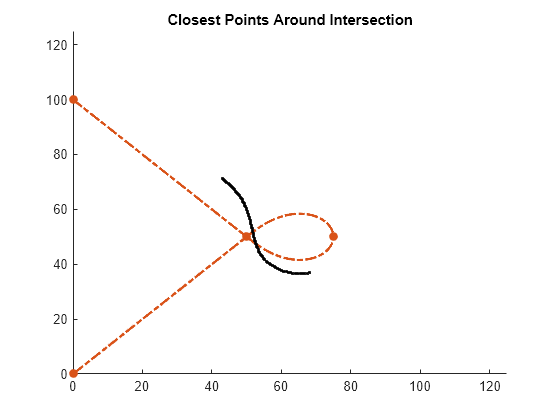

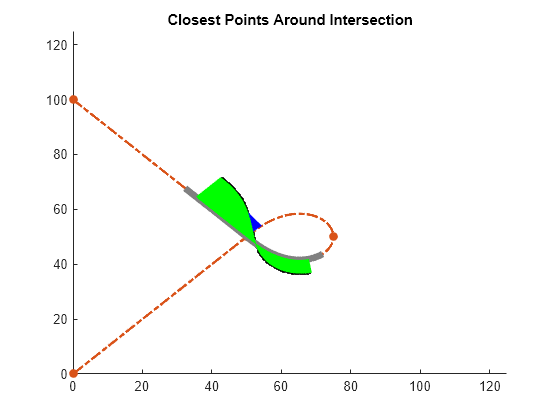

[_] = closestPoint(refPath,points,searchWindow) optionally accepts a nondecreasing row vector searchWindow, which defines the interval of the path to use to find the closest points.

## Examples

collapse all

Generate a reference path from a set of waypoints.

waypoints = [0 0; 50 20; 100 0; 150 10];
refPath = referencePathFrenet(waypoints);

Create a trajectoryGeneratorFrenet object from the reference path.

connector = trajectoryGeneratorFrenet(refPath);

Generate a five-second trajectory between the path origin and a point 30 m down the path as Frenet states.

initState = [0 0 0 0 0 0];  % [S dS ddS L dL ddL]
termState = [30 0 0 0 0 0]; % [S dS ddS L dL ddL]
frenetTraj = connect(connector,initState,termState,5);

Convert the trajectory to the global states.

globalTraj = frenet2global(refPath,frenetTraj.Trajectory);

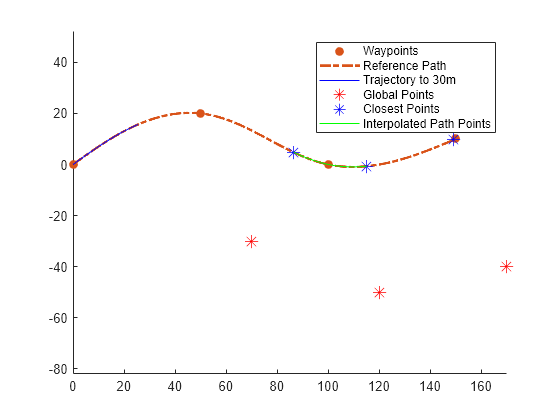

Display the reference path and the trajectory.

show(refPath);
axis equal
hold on
plot(globalTraj(:,1),globalTraj(:,2),'b')

Specify global points and find the closest points on reference path.

globalPoints = waypoints(2:end,:) + [20 -50];
nearestPathPoint = closestPoint(refPath,globalPoints);

Display the global points and the closest points on reference path.

plot(globalPoints(:,1),globalPoints(:,2),'r*','MarkerSize',10)
plot(nearestPathPoint(:,1),nearestPathPoint(:,2),'b*','MarkerSize',10)

Interpolate between the arc lengths of the first two closest points along the reference path.

arclengths = linspace(nearestPathPoint(1,6),nearestPathPoint(2,6),10);
pathStates = interpolate(refPath,arclengths);

Display the interpolated path points.

plot(pathStates(:,1),pathStates(:,2),'g')
legend(["Waypoints","Reference Path","Trajectory to 30m",...
"Global Points","Closest Points","Interpolated Path Points"])

## Input Arguments

collapse all

Reference path, specified as a referencePathFrenet object.

Global points, specified as a P-by-2 numeric matrix with rows of the form [x y]. P is the number of points. Positions are in meters.

## Output Arguments

collapse all

Closest points on the reference path , returned as an N-by-6 numeric matrix with rows of form [x y theta kappa dkappa s], where:

• x y and theta— SE(2) state expressed in global coordinates, with x and y in meters and theta in radians

• kappa — Curvature, or inverse of the radius, in meters

• dkappa — Derivative of curvature with respect to arc length in meters per second

• s — Arc length, or distance along path from path origin, in meters

N is the number of points sampled along the reference path.

Indication whether each point nearest to the corresponding xy coordinate in points, is projected within the search window, returned as an N-element logical row vector, where N is the number of points in points. Points being projected within the search window are true, or false if they lie at the end of a window.

Search window on path to determine closest points, specified as an N-element nondecreasing row vector, where N is the number of points in points.

## Version History

Introduced in R2020b
