# zp2ctf

Convert zero-pole-gain filter parameters to cascaded transfer function form

Since R2024a

## Description

example

[b,a] = zp2ctf(z,p) computes the second-order cascaded transfer function representation of a system with zeros z and poles p.

example

[b,a] = zp2ctf(z,p,k) specifies the scalar gain of the system.

example

[b,a] = zp2ctf(___,Name=Value) specifies additional options using name-value arguments.

example

[___,g] = zp2ctf(___) also returns the overall gain of the system.

## Examples

collapse all

Compute the cascaded transfer function of a discrete-time system from its zeros and poles.

z = [-1 -0.5+0.5i -0.5-0.5i];
p = [0.77 0.9i -0.9i -0.3+0.4i -0.3-0.4i];

[b,a] = zp2ctf(z,p)
b = 3×3

0    1.0000         0
0    1.0000    1.0000
1.0000    1.0000    0.5000

a = 3×3

1.0000   -0.7700         0
1.0000    0.6000    0.2500
1.0000         0    0.8100

Convert a stopband filter represented with zeros, poles, and gain to cascaded transfer-function form.

Get the zeros, poles, and gain of a 16th-order stopband Butterworth filter with stopband normalized frequencies of 0.35$\pi$rad/sample and 0.5$\pi$rad/sample.

[z,p,k] = butter(16,[0.35 0.5],"stop");

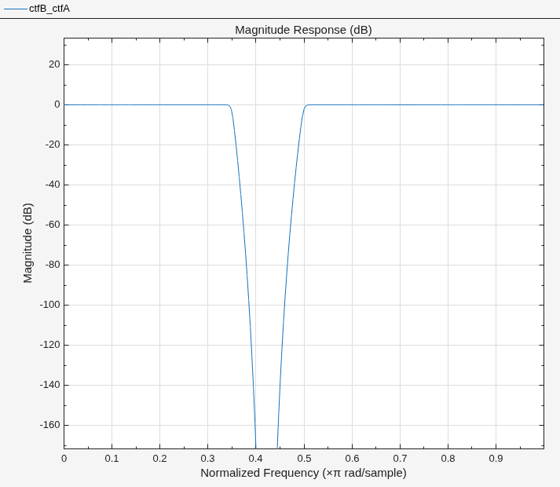

Compute the second-order cascaded transfer function coefficients. Plot the filter frequency response.

[ctfB,ctfA] = zp2ctf(z,p,k);

filterAnalyzer(ctfB,ctfA)

Design a highpass filter and compute the zeros, poles, and gain. Convert a zero-pole-gain filter representation to cascaded transfer function. Customize the conversion with pole sorting and gain scaling options.

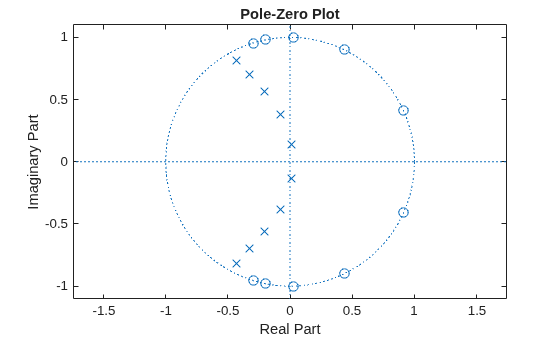

Design a 10th-order type-II Chebyshev highpass filter sampled at 2000 Hz, with a cutoff frequency of 600 Hz and a stopband attenuation of 50 dB. Observe the z-plane showing five pairs of poles with a distance from the origin that ranges from 0 to 1.

[z,p,k] = cheby2(10,50,600/(2000/2),"high");
zplane(z,p,k)

Convert the zero-pole-gain filter representation to cascaded transfer function form. Sort the filter sections in descending order using the distance between the poles and the origin. Specify the gain scaling of the filter sections using the infinity norm. List the pole-origin distances for all the filter sections.

[ctfBs,ctfAs] = zp2ctf(z,p,k,Direction="down",Scale="inf")
ctfBs = 5×3

0.6705    0.3993    0.6705
0.6851    0.2758    0.6851
0.5190   -0.0281    0.5190
0.3424   -0.3002    0.3424
0.2235   -0.4075    0.2235

ctfAs = 5×3

1.0000    0.8652    0.8531
1.0000    0.6592    0.5958
1.0000    0.4056    0.3591
1.0000    0.1474    0.1505
1.0000   -0.0262    0.0189

% Pole-Origin Distances for all Filter Sections.
numSections = size(ctfBs,1);
for iter = 1:numSections
end
VariableNames=["Section" "Pole-Origin Distances"])
ans=5×2 table
Section    Pole-Origin Distances
_______    _____________________

1        0.92363    0.92363
2        0.77188    0.77188
3        0.59926    0.59926
4        0.38792    0.38792
5        0.13735    0.13735

The cascade sections are sorted in descending order by pole-origin distance.

Convert the zero-pole-gain representation of a Butterworth filter to cascaded transfer function form.

Design a 6th-order Butterworth lowpass filter with a normalized cutoff frequency of 0.2$\pi$rad/sample.

[z,p,k] = butter(6,0.2);

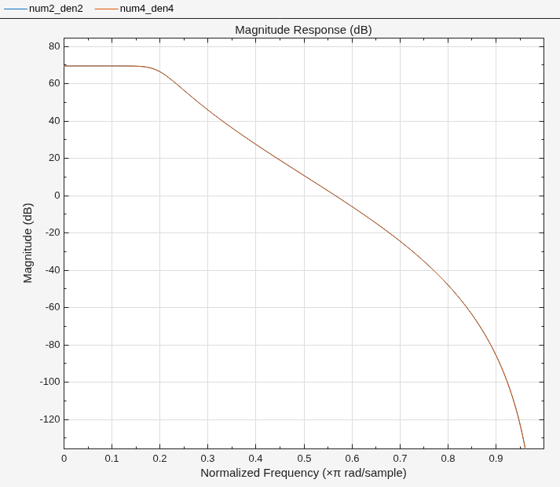

Obtain the numerator and denominator coefficients of the cascaded transfer function in the form of second-order and fourth-order cascaded transfer functions. Plot the frequency response of both cascaded transfer functions. Observe that both cascaded transfer functions yield the same frequency response.

% Second-order
[num2,den2,g2] = zp2ctf(z,p,k)
num2 = 3×3

1     2     1
1     2     1
1     2     1

den2 = 3×3

1.0000   -1.0321    0.2757
1.0000   -1.1430    0.4128
1.0000   -1.4044    0.7359

g2 = 3.4054e-04

% Fourth-order
[num4,den4,g4] = zp2ctf(z,p,k,SectionOrder=4)
num4 = 2×5

1     2     1     0     0
1     4     6     4     1

den4 = 2×5

1.0000   -1.0321    0.2757         0         0
1.0000   -2.5474    2.7539   -1.4209    0.3038

g4 = 3.4054e-04

% Frequency response
filterAnalyzer(num2,den2,num4,den4)

## Input Arguments

collapse all

Zeros and poles of the system, specified as vectors.

The vectors z and p contain the n zeros and m poles of the transfer function H(z), respectively.

$H\left(z\right)=k\frac{\left(z-{z}_{1}\right)\left(z-{z}_{2}\right)\cdots \left(z-{z}_{n}\right)}{\left(z-{p}_{1}\right)\left(z-{p}_{2}\right)\cdots \left(z-{p}_{m}\right)}.$

Example: zp2ctf([-1 -1],[0.5+0.5i 0.5-0.5i]) specifies [-1 -1] as zeros and [0.5+0.5i 0.5-0.5i] as poles.

Data Types: single | double
Complex Number Support: Yes

Gain of the system, specified as a real scalar.

The scalar k lists the gain of the transfer function H(z).

$H\left(z\right)=k\frac{\left(z-{z}_{1}\right)\left(z-{z}_{2}\right)\cdots \left(z-{z}_{n}\right)}{\left(z-{p}_{1}\right)\left(z-{p}_{2}\right)\cdots \left(z-{p}_{m}\right)}.$

If you request the output argument g, then the zp2ctf function assigns the value of k to g.

Data Types: single | double

### Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: zp2ctf(-1,[0.6+0.4i 0.6-0.4i],Direction="down") converts a system with a zero in -1, poles in 0.6+0.4i and 0.6-0.4i, and a stacking order in descending distances between the poles and the origin of the z-plane.

Order of the section transfer functions, specified as either 2 or 4. Depending on the value that you specify for SectionOrder, the zp2ctf function returns either the second-order or the fourth-order cascaded transfer function form.

• 2 —The zp2ctf function returns second-order cascaded transfer function form matrices b and a with three columns each.

• 4 —The zp2ctf function returns fourth-order cascaded transfer function form matrices b and a with five columns each.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Stacking order of the transfer function sections, specified as either "up" or "down". The zp2ctf function sorts the rows of a as a function of the distance between the poles and the origin, depending on the value you specify in Direction:

• "up" — The first row of a contains the poles closest to the origin.

• "down" — The first row of a contains the poles closest to the unit circle.

The zp2ctf function sorts the rows of b so that the zeros in each section are paired with their closest poles associated with the rows of a.

Data Types: char | string

Gain scaling, specified as either "none", "inf", or "l2". The zp2ctf scales the gain and the numerator coefficients of all sections using the filternorm function, depending on the value you specify to "Scale":

• "none" — No scaling

• "inf" — Infinity-norm scaling

• "l2" — L2-norm scaling

Note

• Infinity-norm and L2-norm scaling are appropriate only for direct-form II implementations, and they are supported only for stable systems.

• Using infinity-norm scaling in conjunction with "up" directional ordering minimizes the probability of overflow when implementing the filter system. On the other hand, using L2-norm scaling in conjunction with "down" directional ordering minimizes the peak round-off noise.

Data Types: char | string

## Output Arguments

collapse all

Cascaded transfer function coefficients, returned as either L-by-3 or L-by-5 matrices, where L is the number of sections. The number of columns depends on the value you specify in SectionOrder.

The matrices b and a list the numerator and denominator coefficients of the cascaded transfer function, respectively. See Cascaded Transfer Functions for more information.

Overall system gain, returned as a real scalar.

• If you request g, the zp2ctf function normalizes the numerator coefficients with respect to the system gain k and returns this gain in g.

• If you do not request g, the zp2ctf function uniformly distributes the system gain k across all system sections using the scaleFilterSections function.

collapse all

Partitioning a filter system into sections connected in cascade form offers several advantages, such as easy design, less susceptibility to coefficient quantization errors, and improved stability [2]. A filter system H(z) can be expressed in L sectional transfer functions H1(z), H2(z), …, HL(z), where

$H\left(z\right)=\prod _{k=1}^{L}{H}_{k}\left(z\right)\text{.}$

The zp2ctf computes the numerator and denominator coefficients of the cascaded-transfer-function sections from the zeros, poles, and gain of the filter system. For an Nth-order filter system, there are (L)2 possible combinations [1]. The variable L is the nearest integer greater than or equal to N/2 or N/4 for second-order or fourth-order sections, respectively.

Customize the sorting criteria for pairing of the zeros and poles in the cascaded sections by specifying Direction to start with the poles and zeros closest to the origin of the z-plane ("up"), or closest to the unit circle ("down"). Perform gain scaling across the cascaded sections by specifying Scale. Customize the order of the cascaded sections by setting SectionOrder to either 2 or 4 to generate either second-order or fourth-order cascaded sections, respectively.

The output arguments b and a associate with the matrices

$b=\left[\begin{array}{ccc}{{b}^{\prime }}_{01}& {{b}^{\prime }}_{11}& {{b}^{\prime }}_{21}\\ {{b}^{\prime }}_{02}& {{b}^{\prime }}_{12}& {{b}^{\prime }}_{22}\\ ⋮& ⋮& ⋮\\ {{b}^{\prime }}_{0L}& {{b}^{\prime }}_{1L}& {{b}^{\prime }}_{2L}\end{array}\right]$

and $\text{a}=\left[\begin{array}{ccc}1& {a}_{11}& {a}_{21}\\ 1& {a}_{12}& {a}_{22}\\ ⋮& ⋮& ⋮\\ 1& {a}_{1L}& {a}_{2L}\end{array}\right]$.

These matrices contain the second-order cascaded transfer function coefficients of H(z)

$H\left(z\right)=\prod _{k=1}^{L}\frac{{{b}^{\prime }}_{0k}+{{b}^{\prime }}_{1k}{z}^{-1}+{{b}^{\prime }}_{2k}{z}^{-2}}{1+{a}_{1k}{z}^{-1}+{a}_{2k}{z}^{-2}}.$

If you specify fourth-order sections, the zp2ctf function returns the L-by-5 matrices b and a, where the last two columns correspond to the z–3 and z–4 terms for each cascaded section of H(z).

## References

[1] Lyons, Richard G. Understanding Digital Signal Processing. Upper Saddle River, NJ: Prentice Hall, 2004, pp. 274–278.

[2] Parks, Thomas W., and C. Sidney Burrus. Digital Filter Design. Hoboken, NJ: John Wiley & Sons, 1987, pp. 233–239.
